RSNV-B60L is a professional-grade 6km binocular laser rangefinder delivering ±1m high-precision measurement, integrated digital compass, and advanced height/A-B modes for demanding industrial surveying and security applications.
RSNV-B60L Key Features:
- Ultra-Long 6000m Range & Military-Grade Accuracy Achieve stable measurement up to 6km with an industry-leading accuracy of ±1m, powered by advanced TOF laser technology.
- Advanced Integrated Measurement Modes Beyond simple ranging, it supports A-B Distance, Height Measurement, and 1Hz Continuous Scanning, catering to complex field requirements.
- All-Weather Industrial Reliability (-40°C to 60°C) Engineered to perform in extreme temperatures and harsh environments, ensuring mission-critical reliability for professional teams.
- Built-in 9-Axis Sensor & Digital Compass Integrated high-precision sensors provide real-time azimuth and vertical angle data, simplifying spatial positioning tasks.

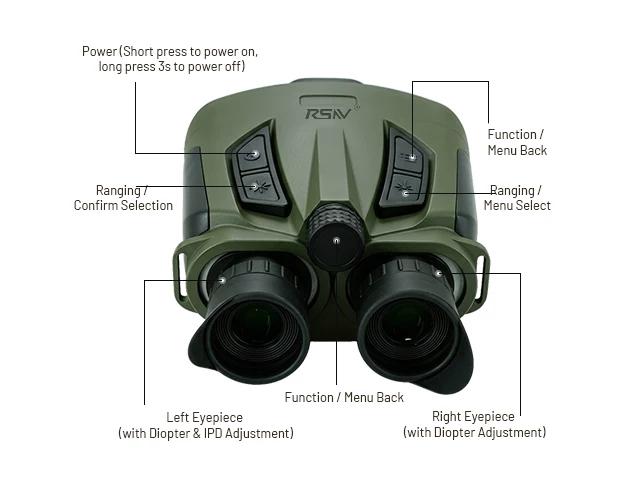

- Superior Ergonomics & Connectivity Features independent diopter adjustment for perfect clarity, Type-C data/charging port, and an external trigger (mouse-tail) interface for system integration.

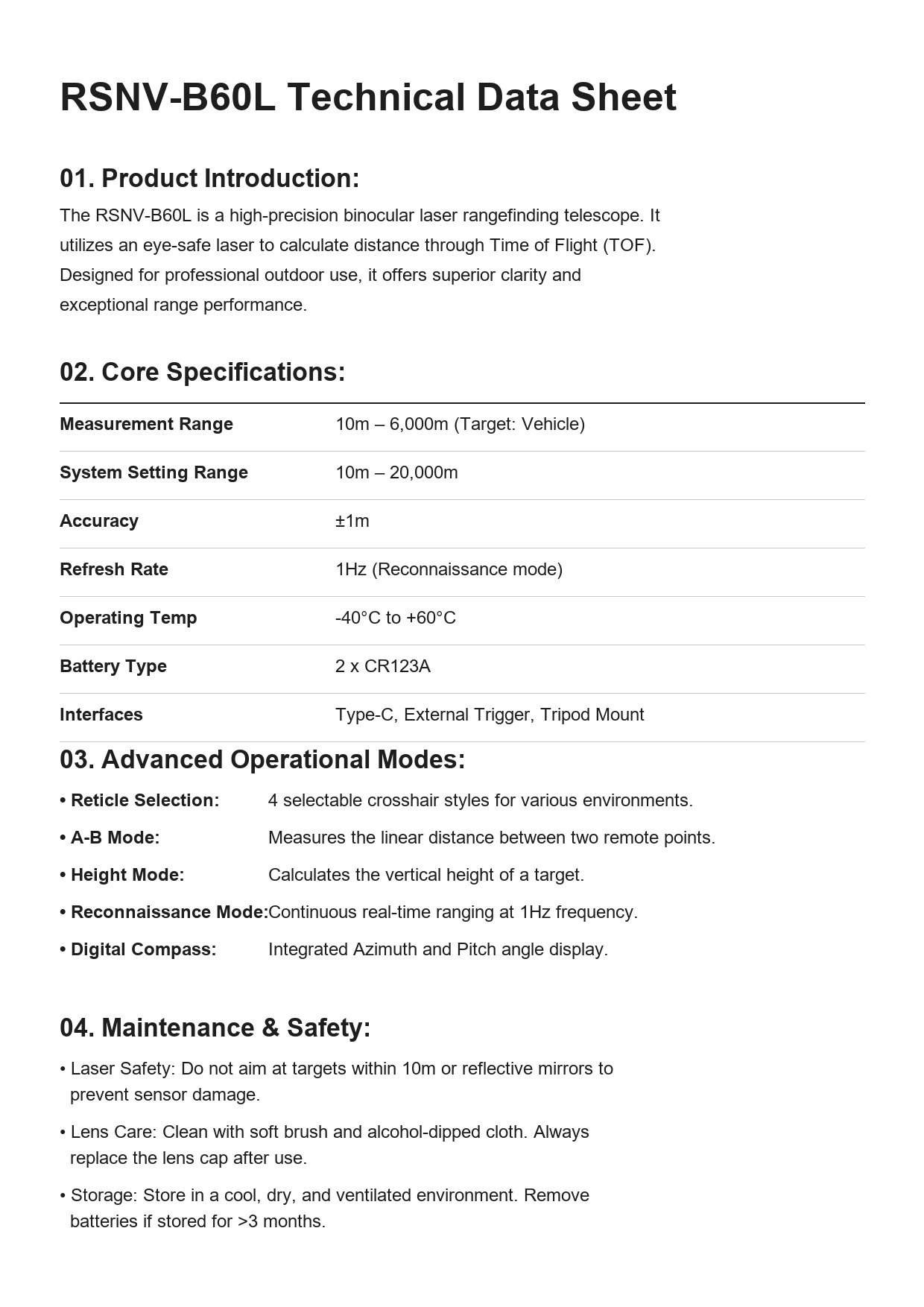

| RSNV-B60L Professional Technical Specification | ||
|
Dimension |
Technical Specifications |
Feature Highlights |
|
Ranging Range |
10m – 6,000m (Typical Target: Vehicle) |
Delivers ultra-stable distance feedback for long-range targets such as vehicles, infrastructure, and maritime vessels. |
|
Measurement Accuracy |
±1m (High Precision) |
Military-grade precision ensures reliable and consistent data for professional surveying, mapping, and engineering. |
|
Measurement Modes |
A-B Distance, Height, 1Hz Continuous Scan |
Versatile algorithms supporting Point-to-Point (A-B) distance, vertical height calculation, and real-time reconnaissance. |
|
Environmental Durability |
-40°C to +60°C Operating Temperature |
Rugged industrial-grade engineering optimized for global climate extremes, from arctic cold to desert heat. |
|
Electronic Sensors |
Integrated 9-Axis Digital Compass |
Provides instant azimuth and pitch data with smart, user-guided calibration for comprehensive spatial positioning. |
|
Connectivity & Power |
Type-C Interface + External Trigger Port |
Universal Type-C for power bank charging, featuring a dedicated mouse-tail trigger jack for professional remote operation. |
|
Optical Ergonomics |
Independent Diopter & Interpupillary Control |
Professional binocular system with customized focus for left/right eye clarity, ensuring fatigue-free observation for long missions. |
|
Laser Safety |
Class 1 Eye-Safe Laser (TOF) |
Utilizes industry-standard eye-safe wavelength, ensuring operator safety without compromising long-distance performance. |
