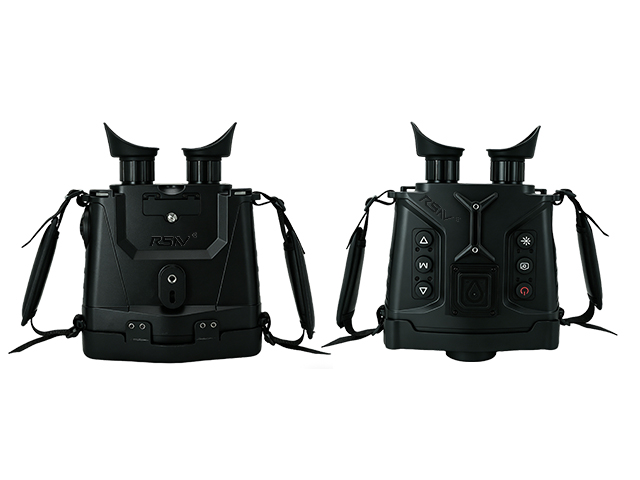

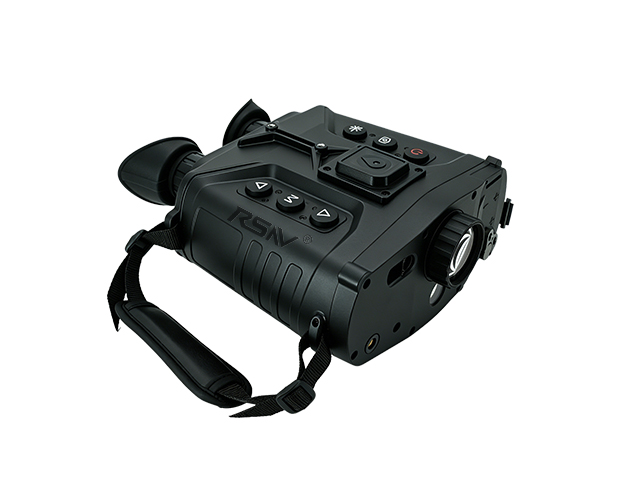

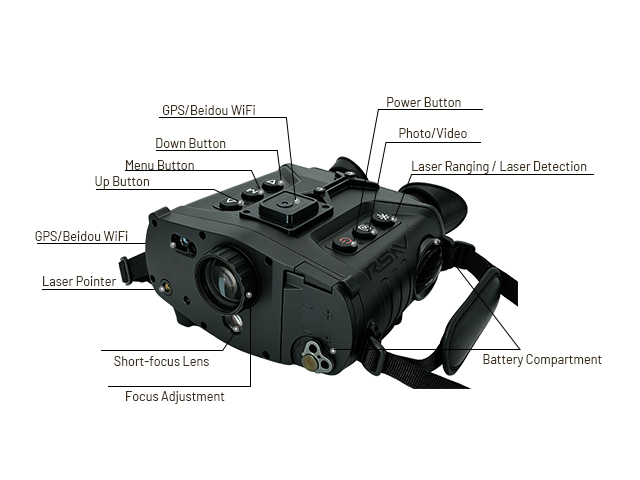

RSNV-AS1500 multi-functional sniper rifle is a lightweight portable and powerful multi-functional handheld sight. It uses visible light imaging technology to search, identify and target targets; built-in laser range finder can accurately measure the target, built-in GPS positioning and electronic compass, with self-positioning and target positioning functions.

RSNV-AS1500 Handheld Anti-Sniper System | Key Selling Points

• Advanced Active Laser "Cat-Eye" Detection Utilizes high-end active laser scanning technology to detect the "cat-eye effect" (retro-reflection) from hidden optical lenses. It can identify sniper scopes, binoculars, and long-range camera lenses (diameter >40mm) even when they are concealed in deep cover.

• Ultra-Long 1500m Detection & Rangefinding Provides a superior tactical advantage with a detection range of up to 1500 meters. The integrated laser rangefinder (LRF) covers 50m to 1500m with an impressive accuracy of ±5m, ensuring precise target distance acquisition in real-time.

• Integrated GPS & Target Positioning System Equipped with built-in GPS/Beidou modules and an electronic compass. It doesn't just find the target; it captures the precise geographic coordinates (latitude, longitude, and altitude) of both the user and the target for immediate tactical coordination.

• 8.0x Continuous Electronic Zoom & Defogging Features a dual OLED display with 1.0x to 8.0x continuous electronic zoom for seamless target tracking. The specialized "Defogging Mode" ensures high-contrast, clear visuals even in challenging weather conditions like heavy mist or smoke.

• WiFi Real-Time Streaming & Evidence Collection Built-in WiFi allows for real-time video streaming to external monitors or mobile devices. The internal storage supports over 4 hours of high-quality video and 10,000 photos (BMP), facilitating seamless post-mission review and evidence export via USB.

• IP66 Ruggedized Build for All-Weather Operations Designed for harsh field environments with an IP66 waterproof and dustproof rating. The system operates reliably in extreme temperatures ranging from -20°C to +55°C, powered by a high-capacity 18650 lithium battery for long-endurance missions.

• Ergonomic Handheld & Tripod-Mountable Design Features a lightweight (≤3.0kg), ergonomic dual-hand grip for stable handheld observation. It also includes a standard mounting interface for tripod installation, making it ideal for both mobile reconnaissance and stationary border surveillance.

RSNV-AS1500 Main functions:

① Eye-safe laser ranging;
② Laser pointing capability;
③ Detection of light spots caused by the "cat's eye effect" in photoelectric devices;
④ Video image storage and playback capability;
⑤ Target positioning function.

RSNV-AS1500 Features:

① Small size and light weight, easy for individual soldiers to carry or install;
② Adaptable to various weather conditions and environments;
③ Simple operation, high reliability and stability, and low maintenance costs.

RSNV-AS1500 Technical Specifications
Detection Principle	Active Laser Scanning (Cat-eye Effect)
Detection Range	100m - 1500m (under good weather)
Detection Target	Optical Scopes/Lenses > 40mm diameter
LRF Range	50m - 1500m
LRF Accuracy	± 5m
Positioning	GPS / Beidou / Electronic Compass
Magnification	1.0x - 8.0x Continuous Electronic Zoom
Display	Dual Binocular OLED Display
Observation Modes	Full Color / Defogging
Video Storage	> 4 Hours (Internal)
Photo Storage	> 10,000 Photos (BMP Format)
Connectivity	WiFi (Real-time video) / USB (Data Export)
Protection Level	IP66 (Waterproof & Dustproof)
Weight	≤ 3.0 kg
Dimensions	225 x 180 x 90 mm
Power Supply	18650 Lithium Battery
