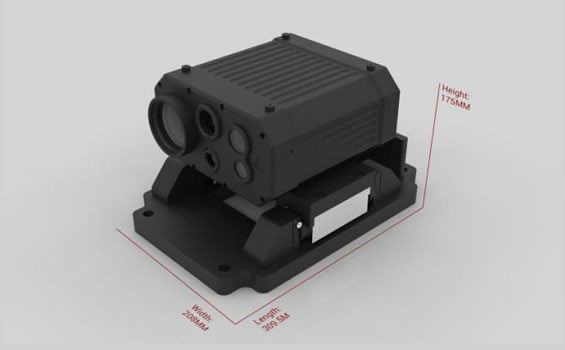

The BRI-CS640 series is a multi-purpose reconnaissance system,, fully integrated multi-functions infrared binocular, which allows the user to detect and located target. It can get directions of the targets in day and night with thermal imager or night vision camera. BRI-CS640 series equipped with an uncooled thermal Imager, eye safe laser range finder and night vision camera. The system provides distance and easy operation, advanced target distance and image storage capability to work well in a wide variety of battlefield conditions.
|
Items |
Technical specification |
|
|
Infrared Imager |
||
|
Detector type |
Uncooled focal plane |
|
|
Detector size |
641×512@12μm |
|
|
Spectral Range |
8～14μm |
|
|
Frame Rate |
50Hz |
|
|
NETD |
＜50mK@300k |
|
|
Infrared Focal Length |
62mm (F#1.0) |
|
|
Focus Range |
8m～∞ |
|
|
Field of View |
7.4°× 5.6° |
|
|
Boot Time |
＜5 s |
|
|
Zoom |
×2,×4 |
|
|
Pole |
white hot/black hot（pseudo-color） |
|
|
Display |
1024×768LED |
|
|
Daylight / Night vision |
||
|
Detector |
1/2’ Ultra low illuminance |
|
|
Resolution |
720×576 |
|
|
Working illumination |
0.001 Lux(monochrome) |
|
|
Focal Length |
35mm |
|
|
Features |
3D DNR, Auto Shutter, Wide Dynamic |
|
|
Laser Rangefinder |
||
|
Working wavelength range |
1.54μm(eye-safety) |
|
|
Range |
50~4000m (Max 5000m) |
|
|
Accuracy |
<±2m |
|
|
Repetition rate |
12 times/minute |
|
|
Efficiency |
>98% |
|
|
Photo/Video Storage |
||
|
Photo Snap |
JPEG |
|
|
Video Recording |
640×480@25Hz |
|
|
Video storage |
32Gb |
|
|
Video Data output |
High Speed USB2.0 |
|
|
Distance |
||
|
Persons(US DOD Standing man) |
Detection：2.5km Recognition：1.0km |
|
|
Vehicle(NATO Tank) |
Detection：4km Recognition：1.6km |
|
|
* Actual range may vary depending on camera setup, environmental conditions, user’s experience, and display method. |
||
|
Power |
||
|
Rechargeable lithium battery |
4×NCR18650B 7.2V /3000mAH |
|
|
Working time |
≥ 5hours (IR mode) |
|
|
Environmental |
||
|
Protect standard |
IP66(IP67 for optional) |
|
|
Operating Temperature |
-30°C～+60°C |
|
|
Storage Temperature |
-40°C～+70°C |
|
|
Humidity |
5%～95%( Non-condensing) |
|
|
Vibration |
Sweep frequency:5-200-5Hz,G-force:2.5g |
|
|
Impact |
10g/11ms Half sine wave |
|
|
Physical Parameter |
||
|
Product Weight |
Control box :6.5kg（Include Battery） |
|
|
Detector:2.4kg |
||
|
Control box:5.6kg |
||
|
Dimension (mm) |
Control box:410（L）×304（W）×120（H） |
|
|
Detector210（L）×190（W）×100（H） |
||
|
Shock mount:410（L）×208（W）×75（H） |
||
|
Accessories |
||
|
Cable |
USB2.0& Video BNC connector |
|
|
Batteries |
4×NCR1850BM batteries with 2ch charger |
|
|
Suitcase |
safety suitcase |
|
