PRODUCT INTRODUCTION

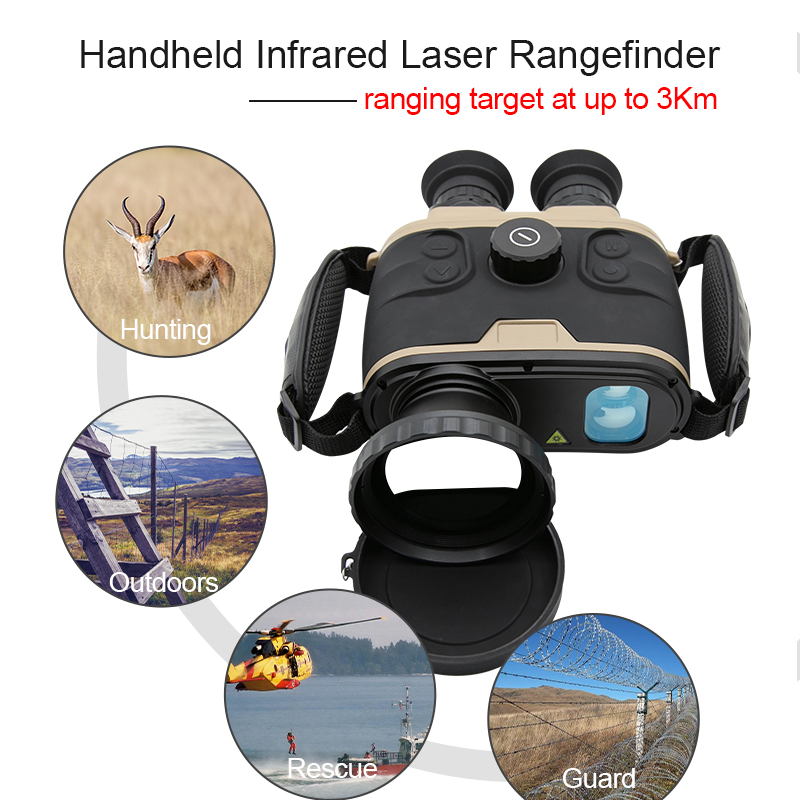

BRI-6100M provide users with the ability to ranging target at up to 3 km even in total darkness or hash weather conditions by build in 640×512 uncool-ed detector, laser rangefinder. The excellent waterproof and dust-proof performance, compact structure, light weight, durable, anti-seismic and anti-interference promise capability for search and rescue, surveillance and other applications.
MAIN FEATURES
Long detection range.
With white light dual channel, good imaging effect.
Real-time display and high thermal sensitivity.
Low power consumption and long battery life.
Ability to penetrate darkness, smoke, fog, and dust.
High precision and simple operation.
PRODUCT SPECIFICATION
Specification
Thermal Sensor Type
Un-cooled Vox
Thermal Sensor Size
640×512@12μm
Spectral Response
8～14μm
Frame Rate
50Hz
Sensitivity
<40mk@300K F1.0
IR Focal Length
100mm F1.3
Field of View
4.4°×3.5°
Focus
Manual
E-Zoom
2×/4×
Polarity
White hot/Black hot（pseudo-colors）
Brightness/Contrast
Auto/Manual
Image Processing
Digital filter/Detail Enhance
Wavelength range
905nm (Eye safety)
Range
5m～2500m （MAX:3000m）*
Accuracy
<±1m
RANGE PERFORMANCE
Man (USDD)
Detect:≥3.0km; Recognize:≥1.3km
Vehicle (NATO Tank)
Detect:≥7.5km; Recognize:≥3.0km
Test conditions: visibility 17km ,ambient temperature 20℃
DISPLAY
Display Type
0.5’1024×768 OLED
Optical Magnification
12.5×
PHOTO /VIDEO STORAGE
Storage
32G
Photos Record
>10000
Video Record
>10hours
External Video/Data Output
High speed USB2.0(Analog video)
POWER
Batteries
Lithium Ion Rechargeable #26650
3.7V@20Wh (Two Batteries)
Power Consumption
～3.5W
Operating Time
≥6 hours(One Battery)
ENVIRONMENTAL & PHYSICAL PARAMETERS
Protect Standard
IP66
Operating/Storage Temp.
-20°C～+55°C/-40°C～+65°C
Vibration
5Hz～500Hz～5Hz,2.5g
Weight
<1.4kg （Include batteries）
Dimensions（mm）
250（L）×170（W）×95（H）
