RSNV Carrier Board · Key Selling Points

1. Full Compatibility With NVIDIA Jetson Orin Series — One Board, Two Power Tiers

• Plug-and-play with Jetson Orin Nano 4GB / 8GB and Orin NX 8GB / 16GB, covering 20–100 TOPS of AI compute on a single carrier board
• Standard 260-Pin SO-DIMM connector, 100% pin-compatible with NVIDIA's official Developer Kit — JetPack 5.x / 6.x boots out of the box, no image porting required

2. Ultra-Compact Design — 87 × 52 mm Credit-Card Footprint

• Total board size only 87 × 52 mm, more than 60% smaller than the standard NVIDIA Developer Kit
• Lightweight and space-saving, perfectly fits inside drone bays, robot chassis, handheld AI terminals, and smart camera enclosures

3. Highly Integrated I/O — Everything Your Device Needs On a Single Board

4. Industrial-Grade Wide Voltage Input — Built for Tough Power Conditions

• 9V – 20V DC wide voltage input, supports up to 7A current draw
• Directly compatible with 12V automotive, 24V industrial, and 3S/4S/5S drone batteries — no extra DC-DC module needed
• Onboard over-current, over-voltage, and reverse-polarity protection

5. Industrial Temperature Range — Reliable In Harsh Environments

• Operating temperature -25°C to +65°C, suitable for outdoor, automotive, factory floor, and cold-climate deployments
• Built-in PWM-controlled fan header, supports both NVIDIA original and 3rd-party heatsinks

6. High-Speed Storage & Connectivity — Bandwidth For Heavy Edge-AI Workloads

• M.2 NVMe SSD (PCIe Gen3) — local SSD with millisecond-level response for large models, video buffering, and dataset caching
• M.2 Key E slot supports 5G / Wi-Fi 6 / BT 5.x modules for cloud-edge integration
• Parallel high-speed data paths via Gigabit Ethernet + USB 3.0 + CSI — runs multiple 4K video streams in real-time inference

7. Production-Ready From Day One — Shorten Your Time-to-Market

• Ships with NVIDIA JetPack SDK pre-installed — boots directly into Ubuntu 22.04
• Full support for CUDA, cuDNN, TensorRT, DeepStream, ROS 2, NVIDIA Isaac
• Complete hardware design package: schematic, PCB footprint library, 3D model, debug toolchain

8. Flexible Business & Customization Options — Built For Brand Owners Going Global

• MOQ from 1 PCS — smooth path from sample → small batch → mass production
• Full support for OEM branding, ODM interface customization (add / remove connectors), custom enclosures, custom thermal solutions
• CE / FCC / RoHS export certification packages available on request

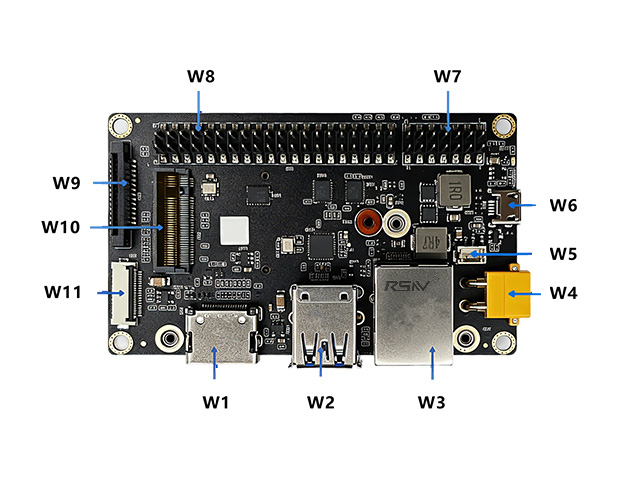

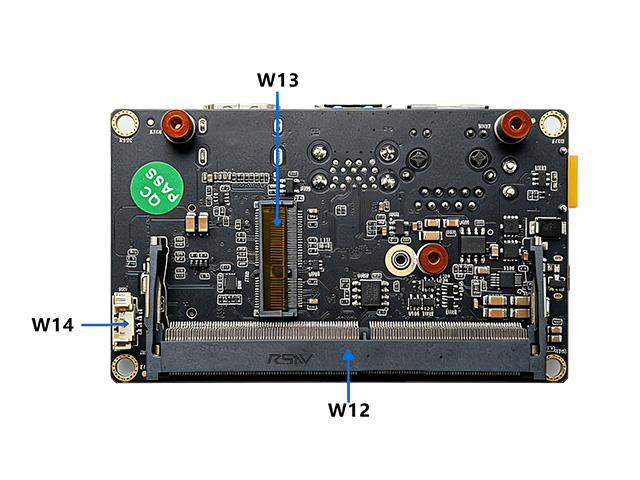

Interface	Quantity / Spec	Typical Use
HDMI 2.0	×1	4K display output
Gigabit Ethernet (RJ45)	×1	High-speed networking, IP camera
USB 3.0 Type-A	×2	LiDAR, USB cameras, peripherals
USB 2.0 Micro-AB (OTG)	×1	System flashing / Recovery mode
M.2 Key M (NVMe SSD 2242)	×1	High-speed local SSD storage
M.2 Key E (PCIe 2230)	×1	5G / Wi-Fi 6 / Bluetooth modules
CSI Camera (MIPI)	×1	HD camera input
CAN Bus	×1	Industrial / automotive comm
40-Pin GPIO + 20-Pin + 14-Pin	-	Custom sensors, debug, level shifting
