RSNV-OBS500 Optical bench is a comprehensive optical measuring instrument with excellent image quality, numerous accessories, easy use and wide applications, mainly used for image quality research of various optical parts, components and optical systems and for the determination of optical basic quantities. RSNV instrument is equipped with various accessories and can perform measurements in the following aspects.
1. The focal length of an objective lens is measured by the Boro method, and the intercept can also be measured directly.
2. The resolving power of objective, prism and their combined systems can be tested by the resolution plate method.3. The imaging quality of lens, prism and their combined systems can be detected by star point method.4. The parallax of flat plate glass and the optical parallax and double aberration of prism can be measured with a self collimating telescope.5. With the aid of other instruments, the parameters of the telescope system, such as the visual degree, parallax, magnification, exit pupil diameter and exit pupil distance, can be measured.

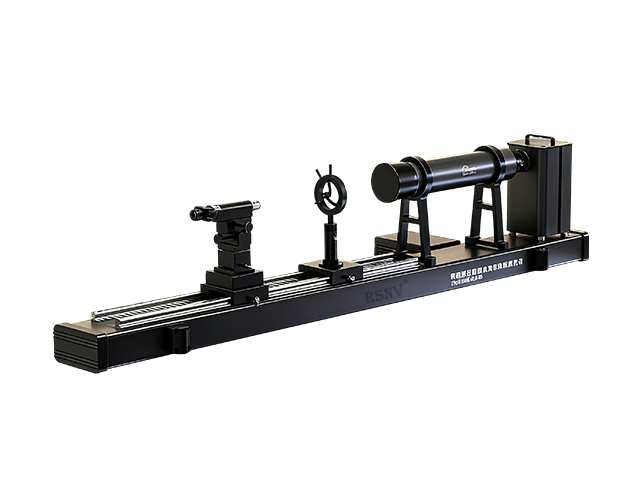

Product Appearance
Technical parameter
Optical system Transmissive Effective aperture Φ80mm Resolution ≤1.8″ Wavelength band 380-780nm Focal length 500mm Field of view ≥3° Parallel light divergence angle ≤10″ Weight 90KG
Product accessories
Name Quantity Units Detailed information Collimator 1 set RSNV-OBS500 Reading microscope 1 set Product model:DXJ-1 Reading microscope accessories 1 set Eyepiece:10X Micrometer eyepiece:15X Objective lens:1X/4X/10X Lens holder 1 set Product model:TJQ-1 Base with guide rail 1 set Rail length 1000mm Filter lens 2 piece Orange(Central wavelength 600nm) Green(Central wavelength 532nm) Attenuating lens 1 piece Neutral attenuation lens(430-730nm) Target plate（Applies to visible light bands） 7 piece Cruciform target plate Resolution target plate：2#/3# Starpoint target plate：0.2/0.02/0.05 Bullseye Board DC POWER SUPPLY 1 set Output voltage:0-30V Output current:0-5A Light source component 1 set Model：ZYG-225 12V30W Halogen light source
Customized options
Optical table 1 set L*W*H 2m*1m*0.8m

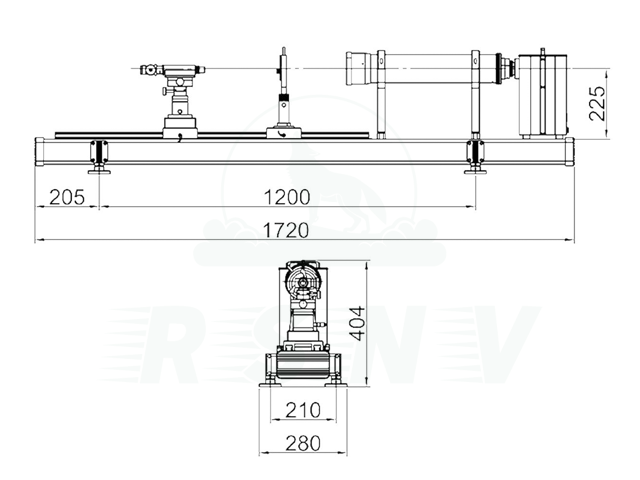

Product Dimension
