RSNV Anti-Reflective Quartz K9 BK7 Window Laser Protective Aspherical Lens

Sales Engineer: Grace Gao

WhatsApp: +86 199 2997 5286

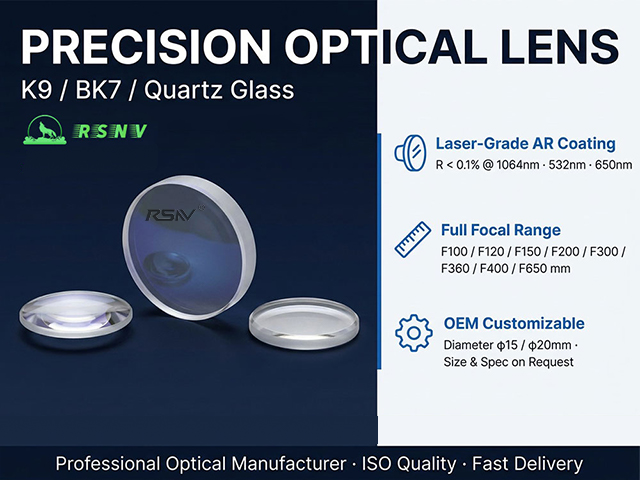

RSNV offers professional-grade precision optical lenses designed for high-performance laser systems and scientific instrumentation. Utilizing premium materials like K9 (BK7) and UV-grade Fused Silica (Quartz), our lenses are engineered to deliver exceptional clarity, minimal energy loss, and high thermal stability.Customizable precision optical components with laser-grade multi-layer coating and exceptional thermal stability for demanding optical setups.

Aspherical-Lens-K9-BK7-Optical-Glass-Lens-Laser-System

RSNV Master Optical Glass Aspherical Lens Specification Sheet
Category	Item	Specifications	Remarks/Apps
Basic Info	Product Name	Optical Lens	-
	Material	K9 / BK7 / Quartz (Fused Silica)	Grade A Quality
	Coating Type	AR (Anti-Reflection)	Multi-layer Coating
	Reflectance	R < 0.1%	at 1064nm, 532nm & 650nm
	Dimensions	φ15 / φ20 / Customizable	Diameter Tolerance: +0/-0.1mm
Materials	K9 / BK7 (Standard)	RI: 1.517 \| Abbe: 64	Visible light > 92%, Cost-effective
Materials	Quartz (Fused Silica)	RI: 1.458 \| Abbe: 67.8	UV Trans, High Power Resistance
Technical	1064 nm (Nd:YAG)	Laser Grade Coating	Cutting, Welding, Marking
	532 nm (Green)	Double Frequency AR	Precision Marking, Medical
	650 nm (Red/Pointer)	Targeting/Scanning AR	Collimation, Range Finding
	S/D	20/10 - 60/40	Scratch-Dig Precision Level
	Surface	λ/4 @ 632.8 nm	High Wavefront Accuracy
Focal Length	Short (F100 - F150)	Focusing Heads / Objectives	Marking, Thin Plate Cutting
	Medium (F200 - F360)	Projection / Welding	Medium Plate Cutting, Welding
	Long (F400 - F650)	Long-distance Collimation	Telescopes, Vision Systems
Industries	Industrial & Lab	Laser Processing & Scientific	Cutting, Welding, Spectrometers
Industries	Medical & Sensing	Medical Laser & LiDAR	Cosmetic Laser, Distance Sensing

Aspherical-Lens-K9-BK7-Optical-Glass-Lens-Laser-System

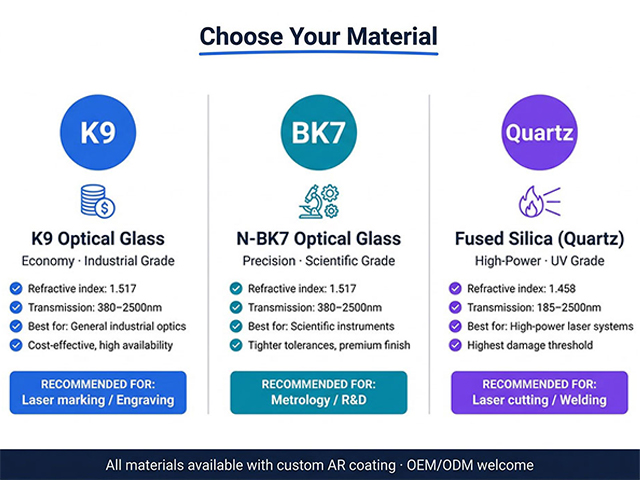

1. K9 Optical Glass (Economy & Industrial Grade)

Performance: A versatile borosilicate crown glass offering excellent transmission from 380nm to 2500nm.

Key Features: Highly cost-effective and readily available for bulk production.

Best For: General industrial optics where high-end scientific precision is not required.

Recommended Applications: Laser Marking and Engraving.

2. N-BK7 Optical Glass (Precision & Scientific Grade)

Performance: Shares the same refractive index (1.517) as K9 but with superior internal homogeneity and lower inclusion counts.

Key Features: Engineered for tighter tolerances and a premium surface finish to minimize wave-front distortion.

Best For: High-accuracy scientific instruments and advanced optical systems.

Recommended Applications: Metrology, R&D, and Laboratory Research.

3. Fused Silica / Quartz (High-Power & UV Grade)

Performance: Features a lower refractive index (1.458) and a significantly wider transmission range from 185nm to 2500nm (Deep UV to NIR).

Key Features: Exceptional thermal stability and the highest laser damage threshold available.

Best For: Environments subject to high heat or high-intensity laser energy.

Recommended Applications: High-Power Laser Cutting and Industrial Welding.

Aspherical-Lens-K9-BK7-Optical-Glass-Lens-Laser-System

Why Choose RSNV Optical Lenses?

ISO Certified Quality: Manufactured under strict ISO quality control standards to ensure consistent precision and surface quality (up to 20/10 scratch-dig).
High Damage Threshold: Our Quartz lenses are specifically treated to withstand the rigors of high-intensity industrial laser cutting and welding.
Fast Global Delivery: As a dedicated optical manufacturer, we maintain a robust inventory of standard specifications for rapid dispatch.
Expert Technical Support: Our engineering team is available to assist with custom specifications and optical system integration.
