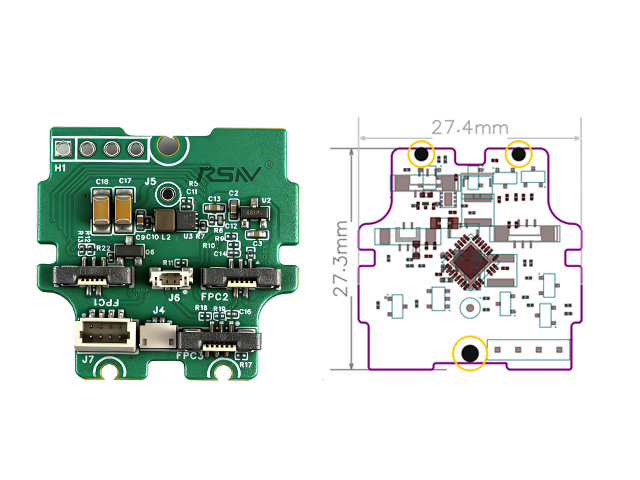

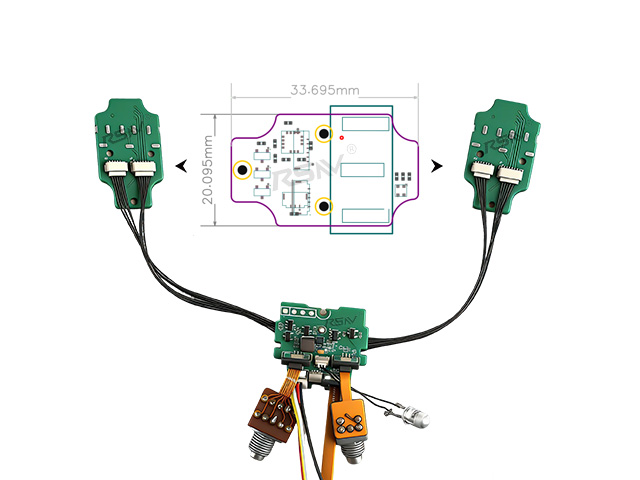

RSNV Optical Module Microdisplay PVS31 Night Vision Binoculars Circuit Board.These are compact, green circuit boards (PCBs) designed for electronic device integration, featuring surface-mounted components (like chips and connectors) and flexible ribbon cables for signal/power transmission. Marked with "RNV copyright," they include mounting holes for easy installation and are built for reliable performance in small electronic systems; custom configurations are available to suit different device requirements.

Function

1.Flipped Up Function;

2.Stand-by Function;

3.IR Illuminator Function;

4.AUTO IR Illuminator;

5.Manual Gain Control Function;

6.Strong Brightness Protection Function;

RSNV-Night Vision Binoculars Circuit Board Specification
Light Sensor Window	Detects ambient light intensity
IR Iluminator	Wavelength 850nm
Manual Gain Buttons	Stepless rotation and pressing function
Four-position Switch	OFF, ON, IR, AUTO
Power Supply	l*AA batteries 1.5v/ l*CR 123 batteries
Supports 4 Types of IlT	Two-plate/Three-plate/Three-wire/Two-wire/Pig-tail Tube
Shutdown Power Consumption	＜10A
Dimensions	37.2mm*32.1mm
Operating Temperature Range	-40℃~+60℃
Storage Temperature Range	40℃~+70℃
