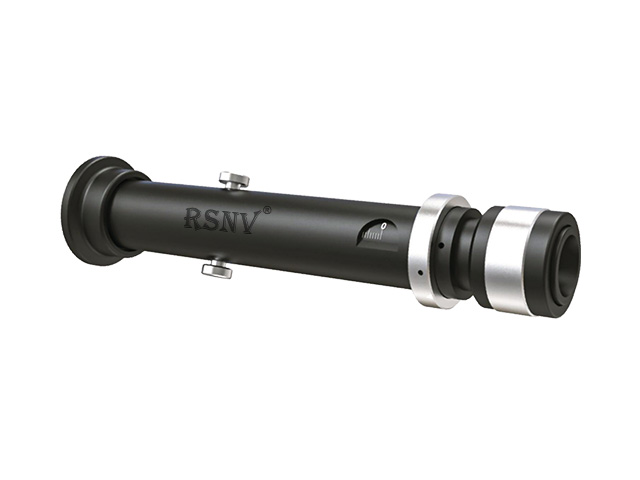

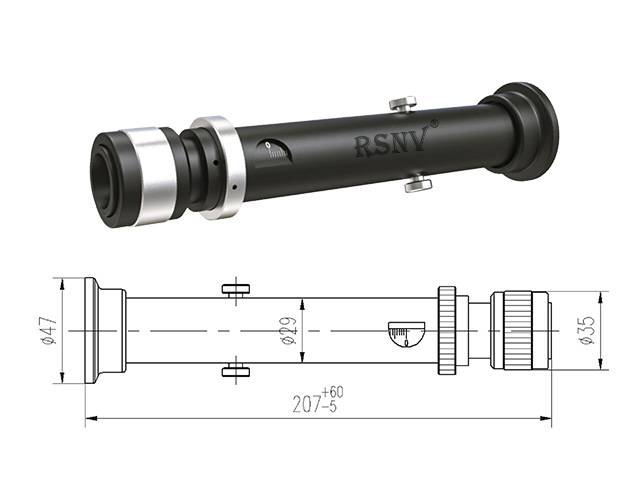

RSNV-25X Magnification Meter is used to measure the exit pupil diameter and exit pupil distance of telescopic systems.
RSNV-25X Technical Parameters
Parameter
Specification
Parameter
Specification
Objective Focal Length
40mm
Magnification
25X
Eyepiece Magnification
12.5X
Objective Axial Magnification
2X
Reticle Scale Range
0-10mm
Eyepiece Diopter Adjustment Range
±5 SD
Reticle Scale Value
0.05mm
Tube Scale Range
0-60mm
Exit Pupil Diameter
3.3mm
Exit Pupil Distance
20mm
