RSNV-CS1000 transmitting parallel light tube is an instrument used to obtain parallel light beams. It is a basic testing reference component for various Optical bench, equipped with other accessories, and can be used to measure multiple optical basic parameters. It is one of the basic optical testing tools commonly used in the production, scientific research, teaching and other units of optical instruments.

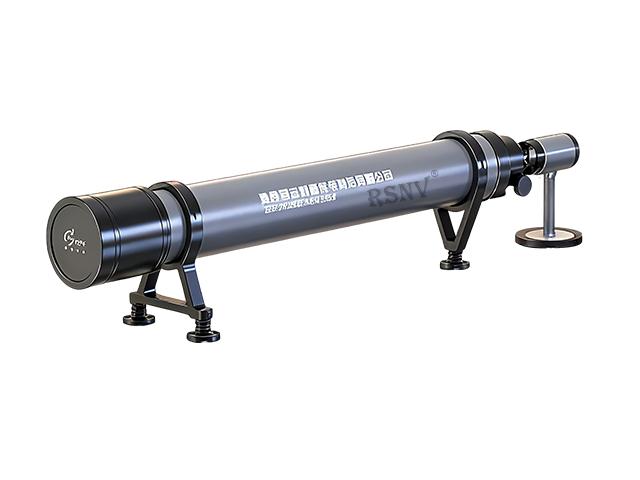

Product appearance
Technical parameter
Optical system
Transmissive
Effective aperture
Φ100mm
Resolution
≤1.3″
Wavelength band
380-780nm
Focal length
1000mm
Field of view
≥1°36′
Parallel light divergence angle
≤10″
Weight
16KG
Product accessories
| Name | Quantity | Units | Detailed information |
| Collimator | 1 | set | CS1000 |
| Bracket | 2 | piece | |
| Filter lens | 2 | piece |
Orange(Central wavelength 600nm)
Green(Central wavelength 532nm)
|
| Attenuating lens | 1 | piece | Neutral attenuation lens(430-730nm) |
| Target plate（Applies to visible light bands） | 11 | piece | Cruciform target plate |
| Resolution target plate：1#/2#/3#/4# | |||
| Starpoint target plate：0.1/0.2/0.01/0.02/0.05 | |||
| Bullseye Board | |||
| DC POWER SUPPLY | 1 | set | Output voltage:0-30V Output current:0-5A |
| Light source component | 1 | set | Model：ZYG-152 |
| 12V30W Halogen light source |
Customized options
Product dimensions
|
Optical table |
1 |
set |
L*W*H 1.5m*1m*0.8m |
