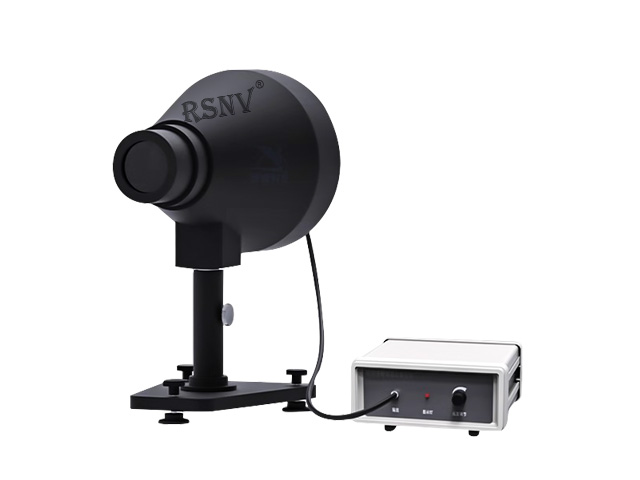

RSNV-FC FOV Collimator is designed to measure the field of view of telescopic systems.
RSNV-FC Technical Parameters
Type
KFS-1
KFS-2
Field Of View
±20° ±25°
Reticle Scale Value
10′
5'
Objective Focal Length
210mm 210mm
Effective Aperture
φ62mm
φ62mm
Resolution
≤4” ≤4"
Light Source
Green LED illumination with adjustable brightness.
Green LED illumination with adjustable brightness.
