MX10160 3-Pin Image Intensifier Tube is widely used in night vision devices, particularly in military-grade equipment such as night vision goggles and scopes. Its compact design makes it ideal for smaller, more portable devices.

This tube features a 3-pin configuration that allows specific electrical connections to enhance its functionality. It also includes autogating technology, which helps manage bright light exposure and protects the tube from damage.

MX10160 is known for its excellent ability to amplify low-light images, making it perfect for use in low-visibility environments. It provides clear, enhanced visuals in a wide range of lighting conditions.

PRODUCT SPECIFICATIONS
FOM	1400+	1600+	1800+	2000+
Sensitivity  (μA/lm)	700+	750+/850+	1000+	1000+
SNR	23+	25+	28+	28+
Resolution(lp/mm)	64+	64+	64-72	64-72
Photo Cathode	S25+	S25+	S25+	S25+
Operating voltage(v)	2.2-3.4	2.2-3.4	2.2-3.4	2.2-3.4
Operating current(mA)	15	25	25	25
Luminance gain(cd/m²/lx)	8000-12000	9000-12000	10000-12000	10000-12000
Maximum output brightness (cd/m²)	4~8	4~8	4~10	4~10
EBI (μlx)	≤0.25	≤0.25	≤0.25	≤0.25
Working illumination range (lx)	/	1×10–⁶~5×10⁴	1×10–⁶~5×10⁴	1×10–⁶~5×10⁴
Uniformity of luminance(2856K)	3:1	3:1	3:1	3:1

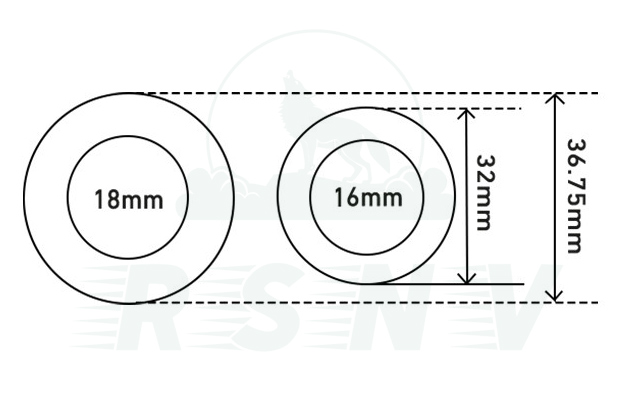

Cathode effective diameter (mm)	≥17.5	≥17.5	≥17.5	≥17.5
Power supply	Non Auto-gate/Auto-gate	Non Auto-gate/Auto-gate	Auto-gate	Auto-gate
Fluorescent powder	P22/P43/P45	P43/P45	P43/P45	P43/P45
Weight (g)	≤80	≤80	≤80	≤80
Power dissipation (mW)	33-51	55-85	55-85	55-85
