RSNV-ITI500 Infrared Thermal Imager Comprehensive Test System Optical Testing Instruments



Sales Engineer: Grace Gao

Email: grace@rsnv.cn

WhatsApp: +86 199 2997 5286

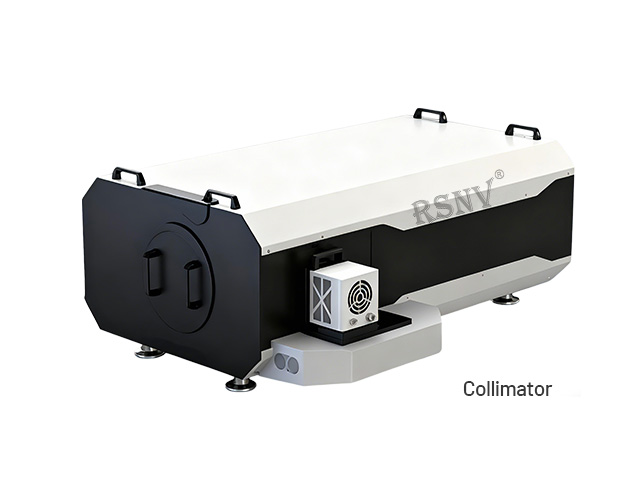

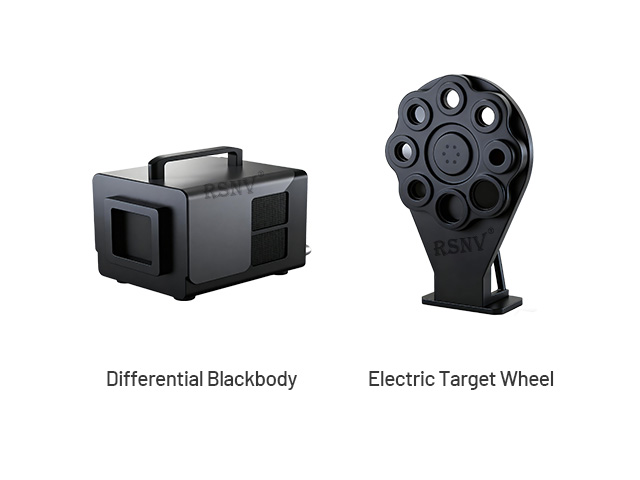

RSNV-ITI500 Infrared Thermal Imager Optical Performance Comprehensive Test System integrates hardware such as a collimator, battery board plugin, high-precision differential blackbody, and multi-dimensional turntable, combined with image analysis software, to evaluate the overall performance of various infrared thermal imagers.

Infrared Thermal Imager Infrared Thermal Imager

System Accessories
Parameter
Specification Model
ZYP-0510LX ZYP-1630LX ZYP-2030LX
Collimator Focal Length 500mm 1600mm 2000mm
Aperture 100mm 300mm
Field of View (FOV) ≥3° ≥1° ≥0.8°
Optical System Type

Off-axis Newtonian reflective
Coating Metal aluminum film + protective film
Applicable Spectral Range 0.4-14μm
System Wavefront RMS better than 1/15λ@632.8
Differential Blackbody Aperture 50*50 100*100
Absolute Temperature Range (25℃ Ambient) 0℃-125℃
Differential Temperature Range -25℃-100℃
Temperature Resolution 0.001℃
Emissivity 0.98±0.02
Radiation Surface Temperature Uniformity (Ambient ±5℃) 0.05℃ 0.1℃
Temperature Stability 0.003℃/min
Temperature Measurement Accuracy (Sensor) ±(0.06℃+0.005t
Average Heating Rate 15℃/min
Average Cooling Rate 10℃/min
Electric Target Wheel Target Position
8/
12
Control Method Digital Electric
Position Repeatability ≤0.01°
Infrared Targets Four-bar/knife-edge/hole/aberration/edge/cross/hole targets
Turntable Adjustment Type Lifting, Horizontal, Tilting, Traversing Adjustment
Adjustment Range Lifting: 200mm; Horizontal: 360°; Tilting: ±20°; Traversing: 100mm
Adjustment Resolution Angle: ≤0.01°; Position: ≤0.01mm
Load Table Area ≥200mm*200mm
Load Capacity ≥20kg
Control Cabinet Computer Configuration 4GB RAM, 1TB HDD
Capture Card Configuration Standard PAL Analog Video Capture Card; Standard SD1/Cameralink Video Capture Card
Hardware Control Software Controls differential blackbody, electric target wheel, turntable, infrared thermal imager
Image Analysis Software Analyzes NETD, MRTD, MDTD, MTF, FOV, non-uniformity, aberration, bad pixels
