RSNV-LRS500 Laser Ranging Sensor Comprehensive Test System is specifically designed for optical axis calibration and performance verification of laser ranging sensors/lidar. It enables full assembly testing and online alignment of laser ranging sensors, combined with image data acquisition and analysis to extract the spot centroid for calibration between the targeting optical axis and laser emission axis, as well as between the laser emission axis and receiving optical axis of the laser ranging sensor.

Function:

1.Deviation measurement between laser emission optical axis and laser reception optical axis;

2.Deviation measurement between aiming optical axis and laser emission optical axis;

3.Consistency verification between mechanical structure datum and optical axis;

4.Laser divergence angle measurement;

5.Pulse energy;

6.Pulse repetition frequency measurement;

RSNV-LRS500 Laser Ranging Sensor Comprehensive Test System
Component	Specification

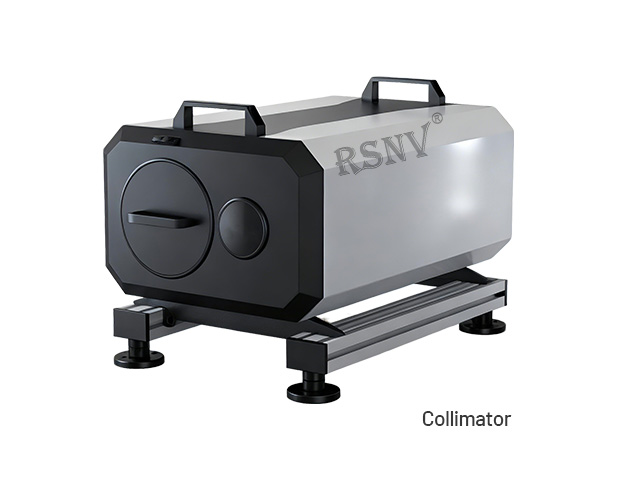

Collimator	Parameters		ZYP-0510LX	ZYP-0613LX				ZYP-1010LX
	Focal Length		500mm	600mm				1000mm
	Aperture		100mm	130mm				100mm
	Field of view(FOV)		≥3°	≥2.6°				≥1.6°
	Optical System Type		Off-axis Newtonian reflective
	Coating		Metallic Aluminum Film + Protective Film
	Applicable Spectral Range		400nm-1700nm
	System Wavefront		RMS better than1/15λ@632.8
Beam Quality Analyzer	Resolution		2048*2048
	Pixel Size		5.5μm*5.5μm
	Focal Plane Array Size		1 inch
	Applicable Wavelength Range		905nm-1550nm
Turntable	Adjustment Type		Lift, horizontal movement, pitch, and lateral translation adjustment
	Adjustment Method		Manual
Laser Energy Meter	Applicable Wavelength Range		905nm-1550nm
	Detection surface size		φ30mm-φ50mm
	Function		Pulse energy, laser power, pulse width, pulse repetition frequency testing
	Data Interface		USB2.0
