RSNV-OBS1000 Optical bench is a comprehensive optical measuring instrument with excellent image quality, numerous accessories, easy use and wide applications, mainly used for image quality research of various optical parts, components and optical systems and for the determination of optical basic quantities. This RSNV instrument is equipped with various accessories and can perform measurements in the following aspects.

1. The focal length of an objective lens is measured by the Boro method, and the intercept can also be measured directly.

2. The resolving power of objective, prism and their combined systems can be tested by the resolution plate method.

3. The imaging quality of lens, prism and their combined systems can be detected by star point method.

4. The parallax of flat plate glass and the optical parallax and double aberration of prism can be measured with a self collimating telescope.

5. With the aid of other instruments, the parameters of the telescope system, such as the visual degree, parallax, magnification, exit pupil diameter and exit pupil distance, can be measured.

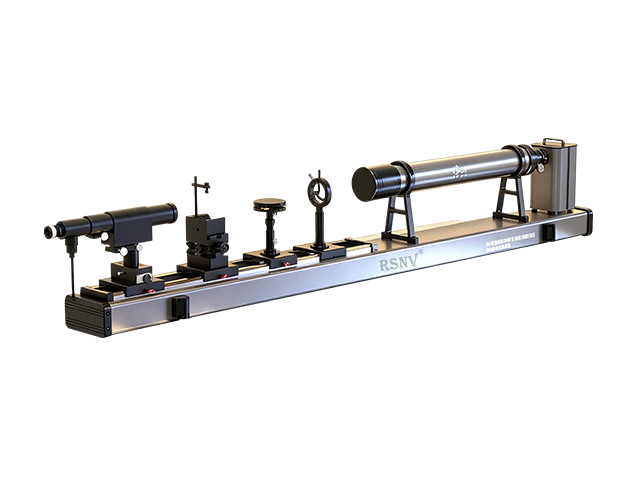

Product appearance

Technical parameter

Optical system	Transmissive
Effective aperture	Φ100mm
Resolution	≤1.8″
Wavelength band	380-780nm
Focal length	1000mm
Field of view	≥1°36′
Parallel light divergence angle	≤10″
Weight	126KG

Product accessories

Name	Quantity	Units	Detailed information
Collimator	1	set	RSNV-OBS1000
Reading microscope	1	set	Product model:DXJ-1
Reading microscope accessories	1	set	Eyepiece:10X
			Micrometer eyepiece:15X
			Objective lens:1X/4X/10X
Adjustable platform	1	set	Product model:KTP-1
Lens holder	1		Product model:TJQ-1
Rotating telescope	1		Product model:ZQJ-20A
Base with guide rail	1		Rail length 1200mm
Filter lens	2	piece	Orange(Central wavelength 600nm)
			Green(Central wavelength 532nm)
Attenuating lens	1	piece	Neutral attenuation lens(430-730nm)
Target plate（Applies to visible light bands）	11	piece	Cruciform target plate
			Resolution target plate：1#/2#/3#/4#
			Starpoint target plate：0.1/0.2/0.01/0.02/0.05
			Bullseye Board
Power supply	1	set	Product model:KFD-6 Used for telescopes
DC POWER SUPPLY	1	set	Output voltage:0-30V  Output current:0-5A
Light source component	1	set	Model：ZYG-225
			12V30W Halogen light source

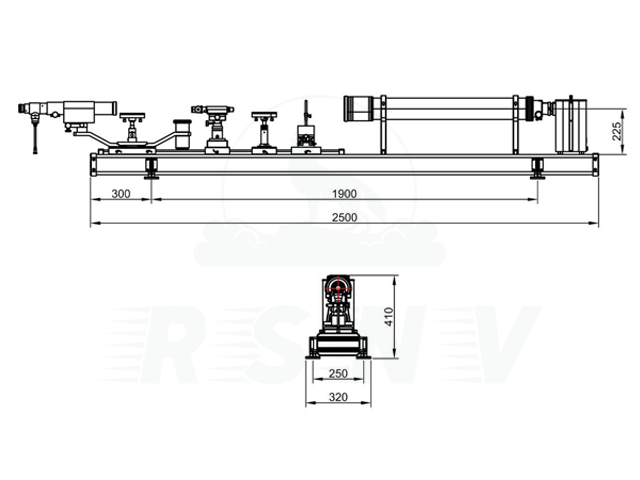

Product dimensions

Customized options

Optical table

1

set

L*W*H   3m*1m*0.8m
