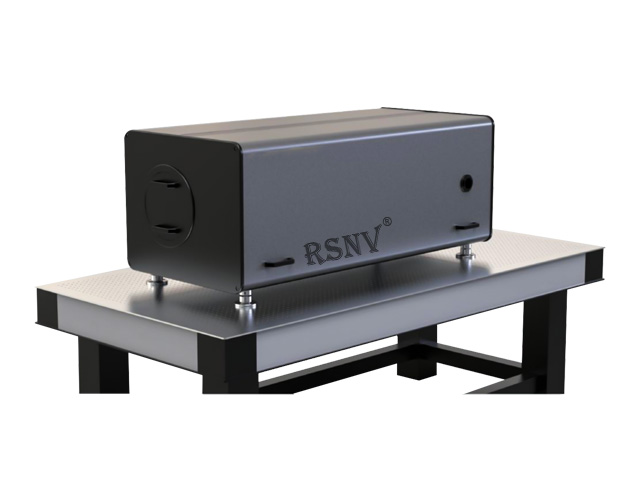

RSNV-OCC Series Off-axis Card-type Collimating Optical Tube adopts an asymmetric optical design, where the primary mirror and the secondary mirror are not on the same straight line. This design reduces stray light and reflections in the system, thereby improving the optical performance. It has the advantages of a large measurement aperture, a long focal length, a wide spectral range, no chromatic aberration, a compact design structure, no obstruction, and high signal-to-noise ratio. It is particularly suitable for applications with extremely high requirements for optical quality.
Product Technical Parameters
Model
ZYP-3030LK
ZYP-5030LK
ZYP-10030LK
Focal length
3000mm
5000mm
10000mm
Caliber
ф300mm
ф300mm
ф300mm
FOV
≥0.53°
≥0.32°
≥0.16°
Main lens material
membrane
Reflectivity
Single lens reflectivity ≥ 85%
Systematic wave aberration
RMS better than 1/15 entry @ 632.8
Parallelism
≤5''
Operating band
Ultraviolet-visible wavelength band, visible-infrared wavelength band
| ZYP-3030LK | ZYP-5030LK | ZYP-10030LK | |
| collimator | ● | ● | ● |
| Electrical control system | ● | ● | ● |
| Framed filters | ● | ● | ● |
| Framed attenuators | ● | ● | ● |
| Framed reticles (visible light band) | ● | ● | ● |
