RSNV-LD20 Intelligent Laser Ranging Target Locator

Sales Engineer: Grace Gao

WhatsApp: +86 199 2997 5286

RSNV-LD20 Laser Rangefinder integrates a 7x medium - magnification direct-view optical system and a 20km ultra-long-range laser ranging function. It is an intelligent, portable, monocular hand-held direct-view optical laser rangefinder. It has functions such as ultra-long-distance and high-precision single-shot ranging, continuous ranging, relative ranging of multiple targets, self-positioning, and target positioning. The direct-view optics have no delay or frame drop, and it can still be used for approximate ranging in a degraded mode without power. It is also equipped with sufficient expansion interfaces to meet different application scenarios, which can be used for environmental reconnaissance and mapping, artillery fire correction, etc.

Optical Technical Parameters
Category	Item	Parameter
Optical performance	Optical magnification	7x±0.3x
	Field of view	6.7°±0.3°（Field of view: 112m@ 1000m）
	Focus range	50m~∞
	Focus adjustment method	Manual focus
	Aperture	42mm
	Diopter	-5SD~+5SD
	Crosshair reticle style	6000MIL
Function	Milliradian crosshair illumination	5 gears
Laser Ranging Technical Parameters
Ranging performance	Laser wavelength	1535nm（ Eye safety）
	Beam divergence	≤0.5mrad
	Minimum range	50m
	Maximum range	Large target	≥23km
		Vehicle target	≥18km
		Personnel target	≥9km
		UAV target	≥5km
	Distance measurement accuracy	±5m
	Measurement frequency	1Hz~5Hz
	Measurement logic	Up to three targets
	Measurement resources (laser life)	> 50,000 measurements
	Distance measurement record	Last 10 goals
Ranging function	Unit	Meter; Yard; Foot
	Relative distance measurement	Support relative distance measurement and positioning of three target points

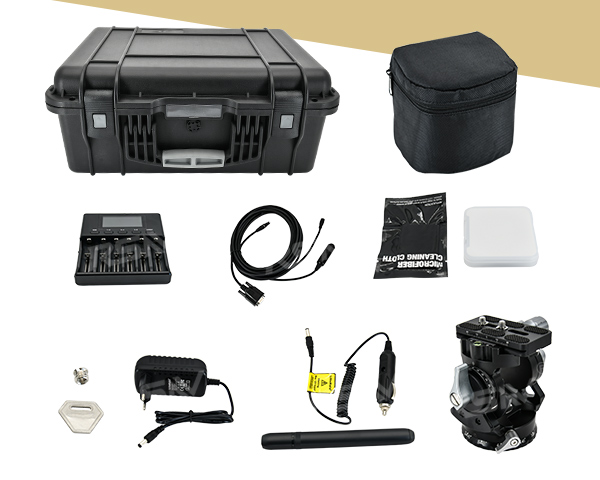

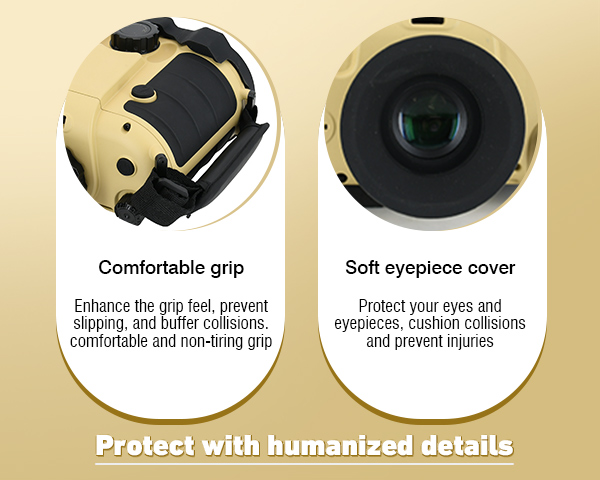

Product Features

1. It can observe and aim at the target with 7 times white light magnification, without delay and frame drop, and can roughly measure the distance without battery, and use standard dense optical reticle.

2. It can temporarily record up to 10 recent targets, support relative distance measurement, angle measurement, height measurement, etc. of up to three targets, and support simultaneous distance measurement and display of three targets in front, middle and back.

3. It can perform self-positioning and target positioning, calculate the distance between itself and the target, the angle between itself and the target, etc., and can be externally triggered through the aviation plug line.

4. It can accurately and automatically calculate the magnetic declination of the location of the device, and display the true north angle/local azimuth).

5. It can accurately and automatically calculate the meridian convergence angle of the location of the device, and display the plane coordinate azimuth.

6. It can expand the infrared/low-light CMOS unit to cope with more complex application scenarios.

7. It has a multi-functional aviation plug interface, including RS232, DC12V, and remote ranging button; including an external multi-optical path module interface.

8. With high-definition video output function, the local OLED display can also be connected to an external HDMI high-definition video display device.
