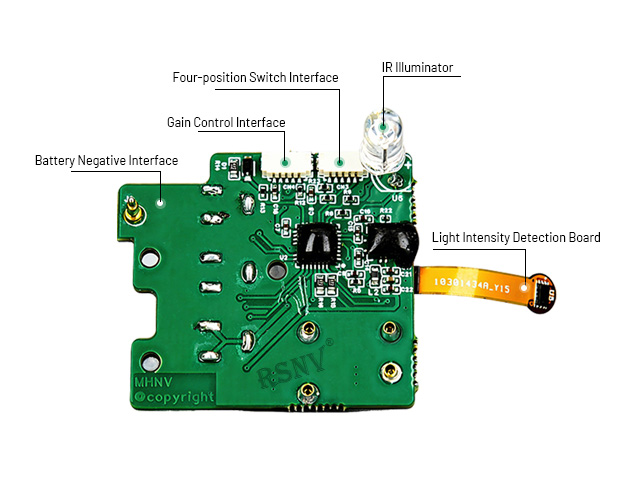

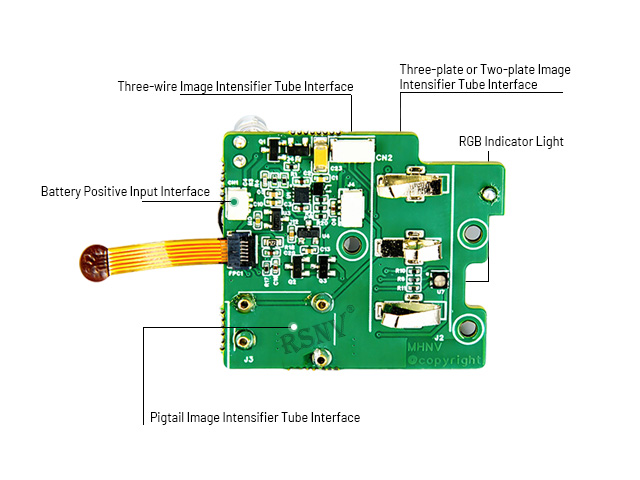

RSNV Optical Module Microdisplay PVS14 Night Vision Monocular Circuit Board.These are compact, green circuit boards (PCBs) designed for electronic device integration, featuring surface-mounted components (like chips and connectors) and flexible ribbon cables for signal/power transmission. Marked with "RNV copyright," they include mounting holes for easy installation and are built for reliable performance in small electronic systems; custom configurations are available to suit different device requirements.
Function
1.Flipped Up Function;
2.Stand-by Function;
3.IR Illuminator Function;
4.AUTO IR Illuminator;
5.Manual Gain Control Function;
6.Strong Brightness Protection Function;
|
RSNV-Night Vision Monocular Circuit Board Specification
|
|
|
Light Sensor Window
|
Detects ambient light intensity
|
|
IR Iluminator
|
Wavelength 850nm
|
|
Manual Gain Buttons
|
Stepless rotation and pressing function
|
|
Four-position Switch
|
OFF, ON, IR, AUTO
|
|
Power Supply
|
l*AA batteries 1.5v/ l*CR 123 batteries
|
|
Supports 4 Types of IlT
|
Two-plate/Three-plate/Three-wire/Two-wire/Pig-tail Tube
|
|
Shutdown Power Consumption
|
＜10A
|
|
Dimensions
|
37.2mm*32.1mm
|
|
Operating Temperature Range
|
-40℃~+60℃
|
|
Storage Temperature Range
|
40℃~+70℃
|
