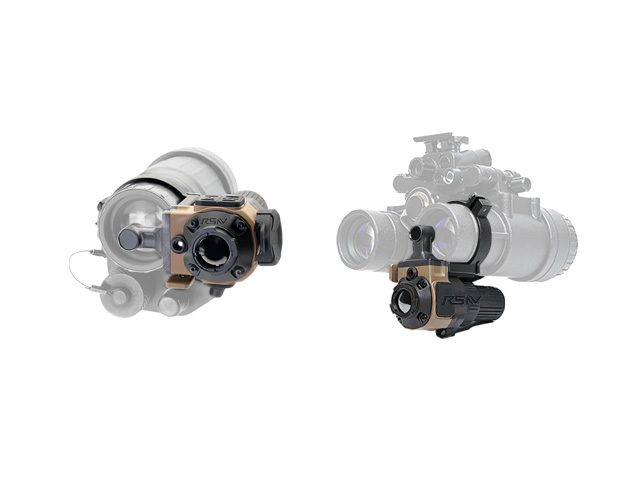

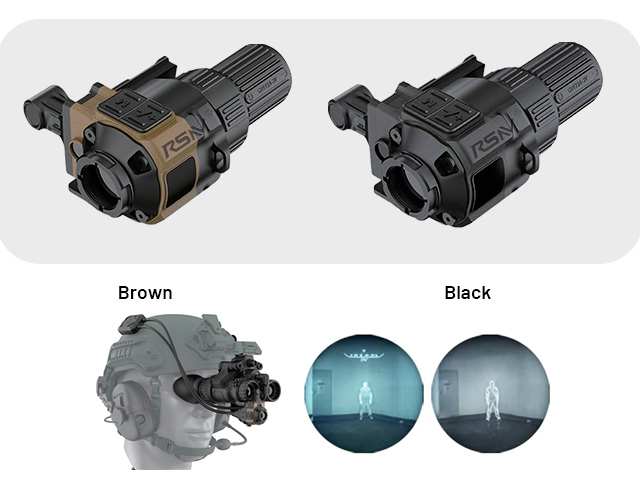

RSNV-Clip on Thermal Imager is an enhancement attachment with a rapid upgrade to the night vision device and infrared thermaimaging ability.It is currently the world's lightest clip-on thermal imager with only 65g. RSNV's Clip-on Thermal Imager is mounted externally using a bracket, allowing for quick disassembly and calibration-free use, enhancing the recognition capabilities of nightvision devices.

RSNV-Clip-on Technical Imager Requirements
Thermal Resolution	640x512
Thermal Pixel Pitch	12 μm
Thermal Frame Rate	50Hz
Lens System	11.5 F1.0
Magnifcation	1X
FOV(H xV)	35°x30°
Recognition Distance	275m (Target size: 1.7mX0.5m, P(n)=99%)
Image Modes	Highlight /Outline (Adjustable threshold)
Automatic Control	ABC, Automatic Shutdown, Auto Standby
Bluetooth Remote Control	2.4G
Compass	Electronic Compass (degree)
Power	1XCR123A Battery (Optional Battery Pack)
Battery Life(22° C)	3 Hours (1 XCR123A),10 hours (Battery Pack)
Compatible	PVS-14 (RNVG, DTNVS, 1431), L3Harris BNVD (PVS-31A, GPNVG)
Minimum Fusion Distance	10m
Operating Temperature	-40°Cto +60°C
Weight	80g (w/ Battery) ,65g (w/o Battery)
Dimension	86(L)X65(W)x40(H)mm
Immersion	IP67

---
