RSNV-UTIS120 Type Binocular Front-Mounted Lens is mainly used to inspect the optical axis non-parallelism and magnification difference of binocular telescopic systems. It is widely applied in special instruments for optical testing, and serves as one of the important tools in the production, assembly and adjustment of optical instruments.
Product appearance
Technical Parameter
| Objective Focal Length | 120mm |
| Exit Pupil Diameter | 5mm |
| Field of View (FOV) | ≥8° |
| Eyepiece Diopter Adjustment Range | ±5 Diopters |
| Measurement Range | V, H both ±2° |
| Weight | 3.5KG |
| Angular Magnification | 6× |
| Eye Relief | 17.5mm |
| Resolution | ≤5″ |
| Effective Aperture | Φ30mm |
| Reticle Graduation Value | 10′ |

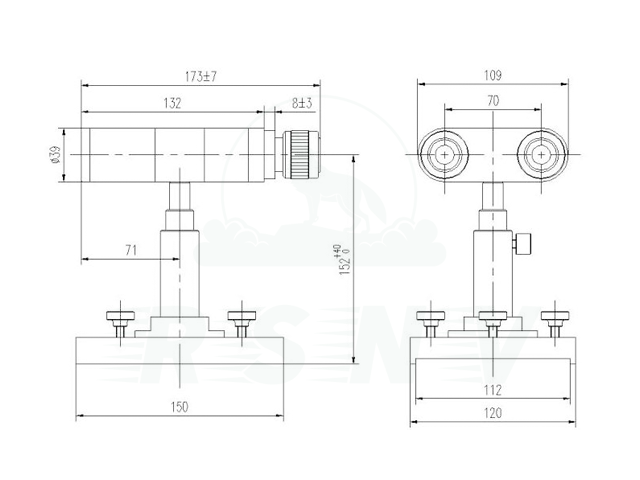

Product dimensions
Product Configuration
| Name | Quantity | Unit | Detailed Information |
| Monocular Fore Optic | 1 | Set | Model RSNV-UTIS120 |
