RSNV-UTIS50 has the following functions:
1. Inspect the diopter range, diopter zero position and diopter accuracy of the eyepiece of optical instruments.
2. Check the diopter of the optical instrument and the zero deviation of the diopter.
3. It is used as a front mirror when detecting the imaging quality and identification rate of optical instruments.

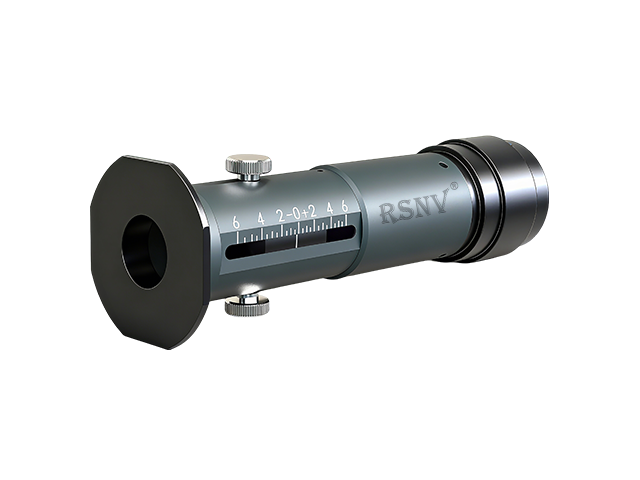

Product appearance
Technical parameter
Focal length of objective lens
50mm
Magnification
2.5X
Field of view
≥6°
Measuring range
±6SD
Exit pupil diameter
6mm
Effective aperture
Φ14mm
Resolution
≤12.3″
Minimum grid value of diopter
0.5SD
Diopter of eyepiece
±5D
Exit pupil distance
18mm

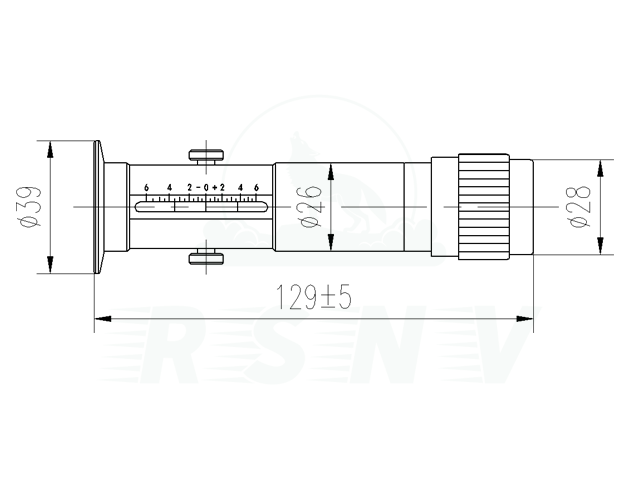

Product dimensions
Product accessories
Name
Quantity
Units
Detailed information
Diopter meter
1
set
RSNV-UTIS50
