RSNV-VLIQ500 Visible Light Imaging Quality Comprehensive Testing System consists of hardware such as collimators, electric target components, integrating sphere light sources, and multi-dimensional turntables, combined with image analysis software. It can objectively evaluate the relevant performance of various visible light telescope systems as a whole.
RSNV-VLIQ500 Visible Light Imaging Quality Comprehensive Testing System
Component
Specification and Model
Component
Parameter

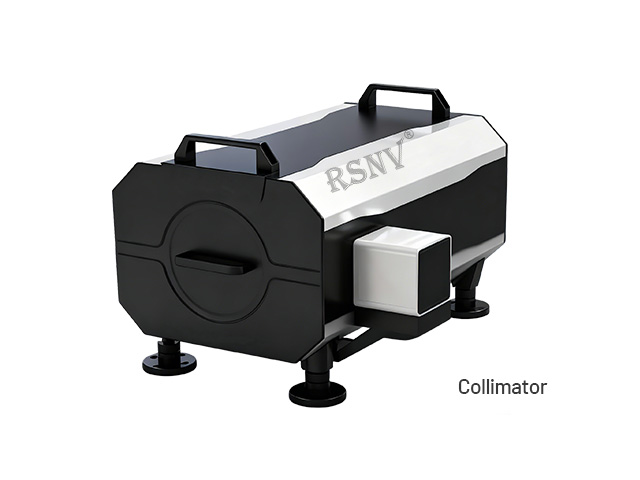

ZYP-0510LX
ZYP-1630LX
ZYP-2030LX
Focal Length
500mm
1600mm
2000mm
Aperture
100mm
300mm
Field of View
≥3°
≥1°
≥0.8°
Optical System Type
Off-axis Newtonian Reflective
Coating
Metallic Silver Film + Protective Film
Applicable Spectral Range
0.4-14μm
System Wavefront Error
RMS Better than 1/15λ@632.8

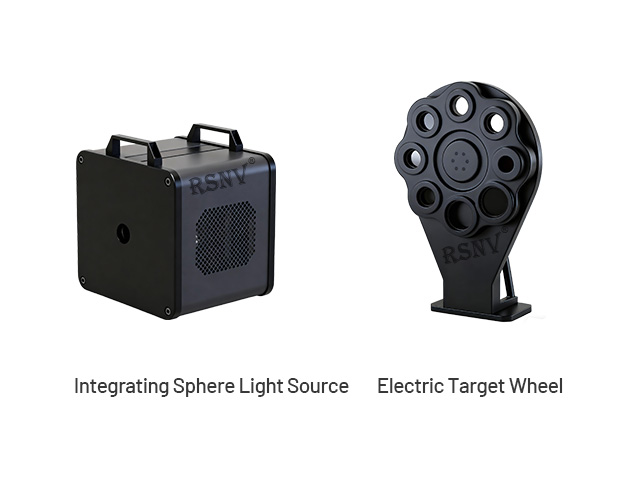

Integrating Sphere Light Source
Aperture
50mm
Inner Diameter of Integrating Sphere
150mm
Uniformity of Light Emission from Integrating Sphere
＞98%
Light Source Type
Halogen Lamp/LED
Spectral Range
400nm-2500nm
Color Temperature
2856K
Illuminance Range of Halogen Lamp
30-3000lux
Color Temperature of LED
6500k
Illuminance Range of LED
30-3000lux
Laser Channel
Reserved SMA905 Fiber Interface
Electric Target Wheel
Target Position
8
12
Control Method
Digital Electric
Position Repeatability
Not more than 0.01°
Targets
Distortion Target, Cross Target, Circular Hole Target, Resolution Target, MRC Target
Turntable
Adjustment Type
Lifting, Horizontal, Pitch, Lateral Adjustment
Adjustment Range
Lifting Stroke 200mm, Horizontal 360°, Pitch ±20°, Lateral Stroke 100mm
Adjustment Resolution
Angle Adjustment Resolution not less than 0.01°, Displacement Adjustment Resolution not less than 0.01mm
Load Table Area
Not less than 200mm*200mm
Load Capacity
Not less than 30kg
Control Cabinet
Computer Configuration
4GB Memory, 1TB Hard Disk Space
Hardware Control Software
Can control integrating sphere light source, electric target wheel, turntable components, and visible light camera
Image Analysis Software
Can perform analysis and calculation for MTF, FOV, resolving power, MRC, focal length, non-uniformity, distortion, and bad pixels
