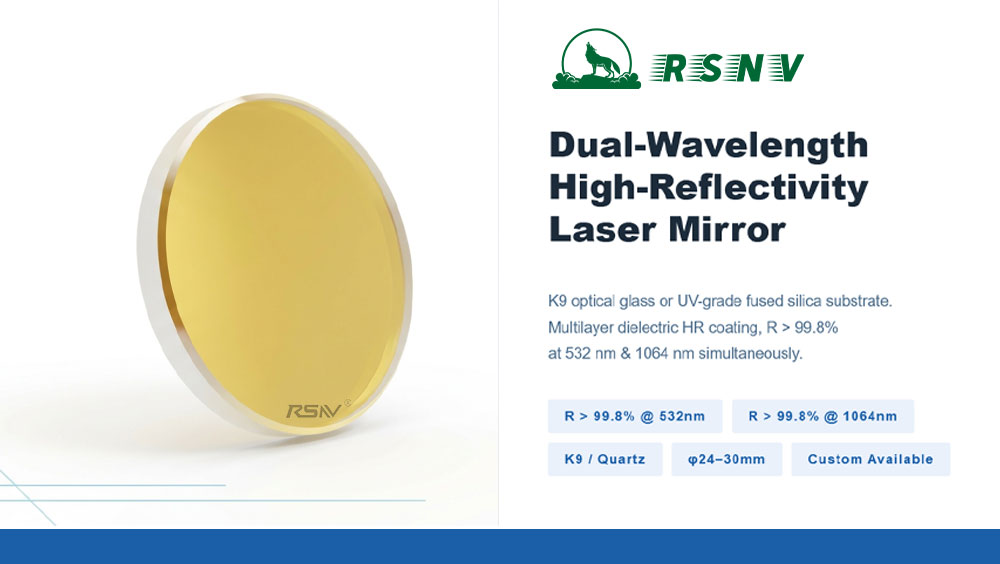

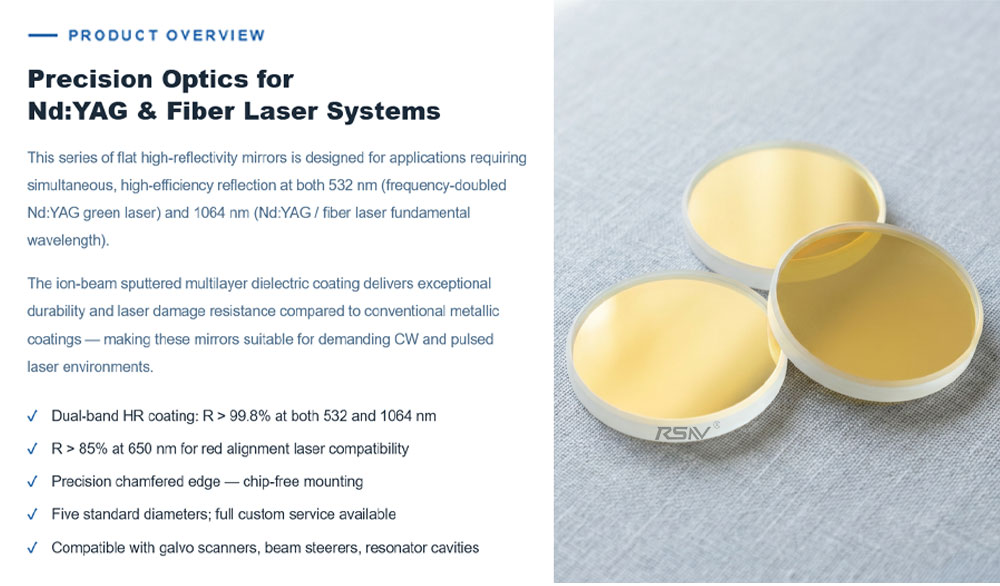

RSNV Dual-Wavelength High-Reflectivity Laser Mirror features a high-damage-threshold multi-layer coating on K9 or Quartz substrates, offering exceptional thermal stability and durability for demanding industrial laser processing and harmonic generation.RSNV High-performance dual-wavelength laser mirror delivering ultra-high reflectivity (>99.8%) for 1064nm/532nm Nd:YAG systems with integrated 650nm pilot beam support for precise alignment.
|
Parameter |
Specifications |
|
1064m Reflector Optical Mirror Reflective Mirror |
Dual-Wavelength Nd:YAG Laser Mirror |
|
Substrate Material |
K9 (BK7) / Fused Silica (Quartz) |
|
Primary Wavelength 1 |
1064 nm (Reflectivity R > 99.8%) |
|
Primary Wavelength 2 |
532 nm (Reflectivity R > 99.8%) |
|
Alignment Wavelength |
650 nm (Reflectivity R > 85%) |
|
Standard Diameters |
φ24 / 25 / 25.4 / 26 / 30 mm (Customizable) |
|
Coating Type |
Hard Dielectric Multi-layer Coating |
|
Surface Quality |
40-20 Scratch-Dig (Standard) / 20-10 (High Precision) |
|
Surface Flatness |
λ/4 @ 633nm (Standard) / λ/10 (Precision Grade) |
|
Clear Aperture |
> 90% of diameter |
|
Angle of Incidence (AOI) |
0° or 45° (Specified upon order) |
Product Selling Points
- Dual-Wavelength High Efficiency: Optimized for both 1064nm (Infrared) and 532nm (Green) laser lines with ultra-high reflectivity (>99.8%), ensuring minimal energy loss and maximum system power.
- Red Pilot Beam Compatibility: Specifically engineered to reflect red alignment lasers (650nm) at >85%, allowing for precise beam positioning and enhanced operational safety.
- Premium Material Options: Available in K9 (BK7) for cost-effective standard applications or Fused Silica (Quartz) for high-power laser systems requiring superior thermal stability and durability.
- Advanced Dielectric Coating: Hard dielectric multi-layer coatings provide high damage thresholds and excellent environmental stability, outperforming traditional metallic reflectors.

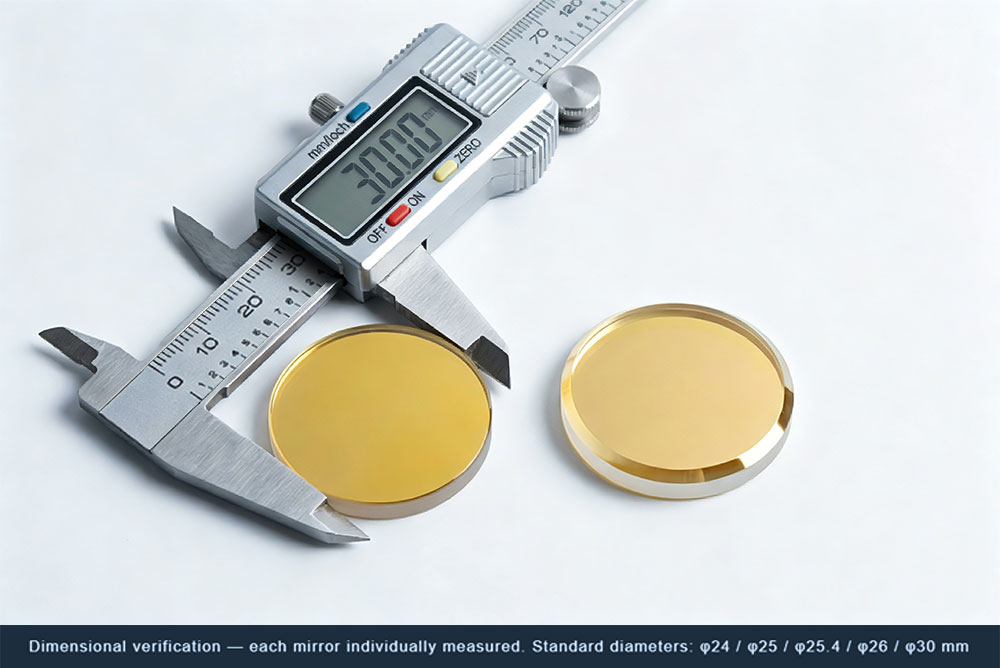

- Versatile Sizing & Customization: Offered in standard diameters (24/25/25.4/26/30mm) with flexible customization options for dimensions and specific Angles of Incidence (AOI)
