RSNV-L Series adopts a self-developed intelligent AI chip and exclusive image processing algorithms. It processes incoming visible light and infrared video streams to realize real-time automatic target detection and recognition. It supports both auto and manual target locking and tracking, and can output deviation data of targets offset from the field of view center.
Product Selling Points
1. Compact & Ultra-Lightweight Design Specifically engineered for space-constrained applications. Weighing as little as 21.6g with a credit-card-sized form factor, it is the ideal processing core for UAV gimbals, handheld stabilizers, and miniature pods.
2. Ultra-Low Power Consumption (<4W) Optimized for battery-powered systems. With a typical power profile of less than 4W, it significantly extends the flight endurance of drones and ensures longer operational cycles for portable security devices.
3. High-Precision Multi-Algorithm Tracking Integrated with Centroid, Correlation, and AI-based tracking algorithms. Achieve sub-pixel accuracy (≤1 pixel) and high-speed target locking (≥32 pixels/frame), ensuring stable performance even in high-interference environments.
4. Industrial-Grade Environmental Compliance Built to withstand harsh outdoor conditions. This board operates reliably in extreme temperatures ranging from -40°C to +65°C, making it suitable for high-altitude missions and desert surveillance.

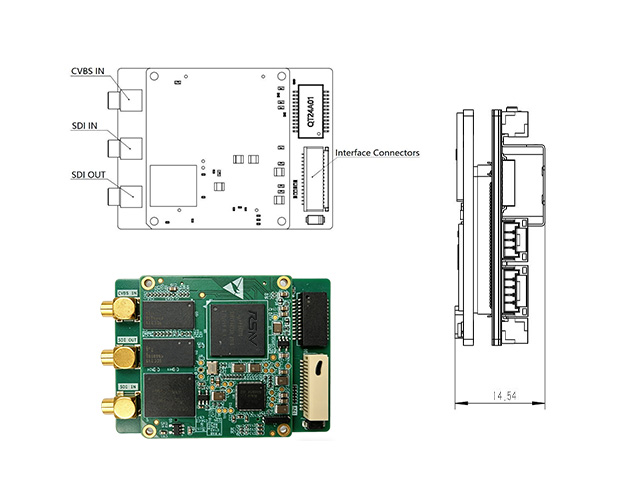

5. Comprehensive Video Interface Support Highly versatile connectivity. Supports 3G-SDI, CVBS, and MIPI video inputs/outputs, alongside Gigabit Ethernet for real-time RTSP/UDP streaming and H.264/H.265 hardware encoding.
6. Intelligent Recognition & OSD Overlay Features built-in AI target recognition for persons, vehicles, and aircraft. It supports real-time OSD data overlay (coordinates, tracking status, reticles) and local media storage for mission review.
|
Performance Index |
Specification Details |
|
Product Model |
Trac-L Series |
|
Tracking Frame Rate |
30 Hz - 50 Hz |
|
Tracking Accuracy |
≤ 1 pixel (High Precision) |
|
Tracking Algorithms |
Centroid, Correlation, Multi-target, AI Tracking |
|
Video Compression |
H.264 / H.265 Hardware Encoding |
|
Power Consumption |
< 4 W (Typical Low Power) |
|
Operating Voltage |
12V DC ± 2V |
|
Operating Temperature |
-40°C to +65°C (Industrial Grade) |
|
Storage Capacity |
On-board 8GB/16GB (Expandable) |
|

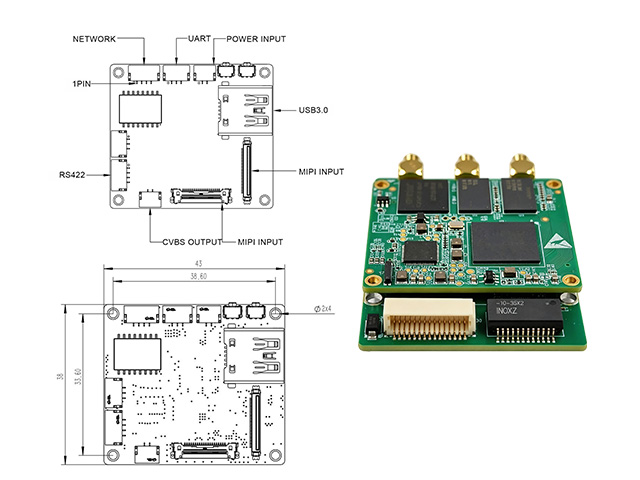

Video Interfaces |
SDI (3G-SDI), CVBS (PAL), MIPI, USB 2.0/3.0 |
|
Communication Ports |
RS422, RS232, UART, TTL, Ethernet |
|
Weight |
21.6g - 28.2g (Bare Board) |
