1. Optical axis adjustment for multiple optical axis systems such as visible, infrared, and laser;
2. Combined with different reticle and other accessories, it can be used to detect the basic parameters of optical system;
3. Infrared band imaging quality detection and optical axis correction can be achieved with area source blackbody;
4. Laser collimator can be formed with laser light source to realize laser beam expansion;
5. Can provide an ultra low divergence angle of parallel light;
6. Simulating an infinite target.

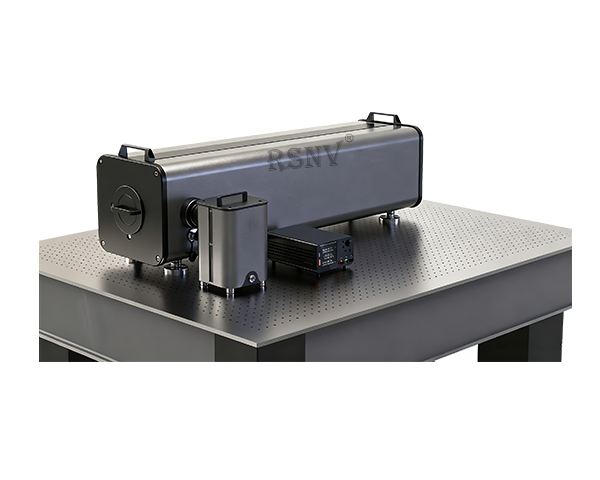

Product appearance
External dimensions
Optical system
Off-axis Newtonian reflection
Main mirror material
Standard configuration：Quartz
Customized：Crystallite
Coating
Standard configuration：Aluminum+silicon protection
Customized：Gold/Silver
Reflectivity
≥85%
Focal length
1000mm
Effective aperture
Φ100mm
Field of view
1.6°
Parallel light divergence angle
≤5″
System wavefront aberration
RMS better than 1/15λ@632.8
Weight
60KG
Product accessories
Name
Quantity
Units
Detailed information
Collimator
1
set
ZYP-0510L
Filter lens
2
piece
Orange(Central wavelength 600nm)
Green(Central wavelength 532nm)
Attenuating lens
1
piece
Neutral attenuation lens(430-730nm)
Target plate（Applies to visible light bands）
12
piece
Cruciform target plate
Resolution target plate：1#/2#/3#/4#/5#
Starpoint target plate：0.1/0.2/0.01/0.02/0.05
Bullseye Board
DC POWER SUPPLY
1
set
Output voltage:0-30V Output current:5A
Light source component
1
set
Model：ZYG-175
12V30W Halogen light source
Customized options
Target plate（Suitable for infrared band）
Four-bar target board：Used to calculate the minimum resolved temperature difference (MRTD) test
Circular hole target plate：Used to test minimum detectable temperature difference (MDTD) parameters
Narrow slit target plate：Used to test slit response function (SRF) parameters
Cross shaped circular hole target plate：Used for axis alignment, aiming, and focusing functions
Distorted target plate：Image distortion generated by the camera under test for test evaluation
Contour target plate：Used to evaluate the recognition range of the tested camera for real targets
Black body
1
piece
ZYH-175M
Optical table
1
piece
L*W*H 1.5m*1m*0.8m

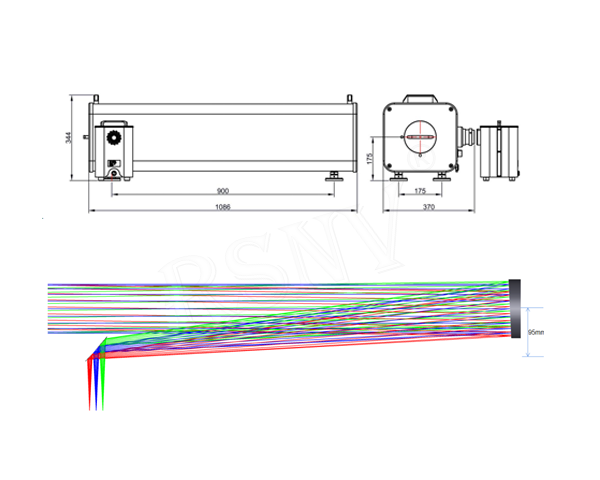

Product dimensions
