How To Choose A High-Quality Thermal Imaging Module?
Sales Engineer: Grace Gao
Email: grace@bri-elec.com
WhatsApp: 0086-199 2997 5286

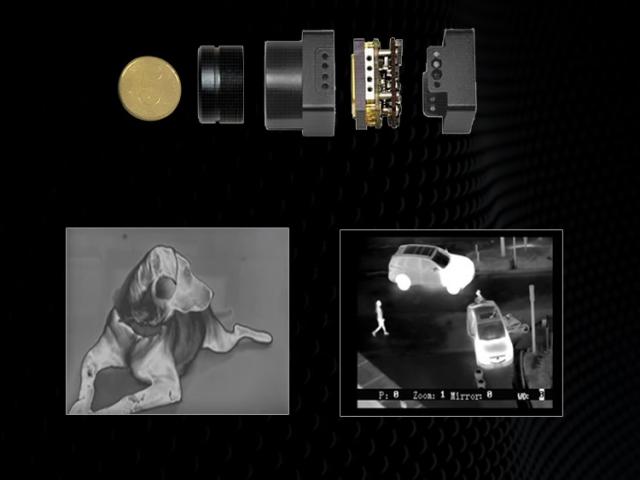

Thermal imaging module is composed of infrared thermal imaging core and lens, and the most important thing is infrared thermal imaging core. It has fixed focus, dual field of view and continuous zoom. It is equipped with professional optical components and image Signal processing circuit,. This article will focus on the issues that need to be paid attention to in infrared thermal imaging cores.
1. Detector
The detector is equivalent to the human brain. If a person does not have a brain, it is an empty shell. If the movement does not have a detector, the effect is the same. Infrared detectors are divided into cooling type and non-cooling type. Cooling type infrared detectors are currently mainly used in high-end Military equipment is expensive; uncooled infrared detectors can work at room temperature, with small size and low power consumption, and are often used in civilian and some military applications. Thermosensitive materials are an important bridge between sensing infrared radiation and output signals, and are the core components of infrared detectors. At present, the thermosensitive materials of uncooled infrared detectors are mainly vanadium oxide (VOx) and amorphous silicon (α-Si).
2. Clarity
The detector resolution of an infrared thermal imager is an important indicator of clarity. The resolution of the detector directly affects the final imaging effect. The higher the resolution, the clearer the image, the clearer the object seen, and the better the user experience. good.
3. Core technology
The pixel pitch of the infrared thermal imager detector is one of the core technologies of the infrared thermal imaging industry. The pixel pitch continues to break through new records. At present, the mainstream is 17 microns, and it is moving towards 14 microns. Advanced level 12 micron detectors too.
4. High frame rate
The number of pictures displayed per second, the higher the frame rate, the more coherent the picture movement and the clearer the picture quality.
The thermal imaging module developed and produced by our company has four models, BRI-C3/C6 (without baffle) and BRI-D3/D6 (with baffle), which have been sold to all over the world on a large scale.
PRODUCT OVERVIEW
- BRI-C3/C6/D3/D6 Gen2 thermal module is the smallest thermal imaging module in the world.
- BRI-C3/C6/D3/D6 adopts the latest Gen2 384x288px/640*480@17umFPA uncooled detector.
- BRI-C3/C6/D3/D6 can provide clearer picture and customized connection interface, they will bring great success to your system integration.
MAIN FEATURES
- Smallest in size
- Lightest in weight, module excluding lens only 12g Interface of Mini thermal imaging core

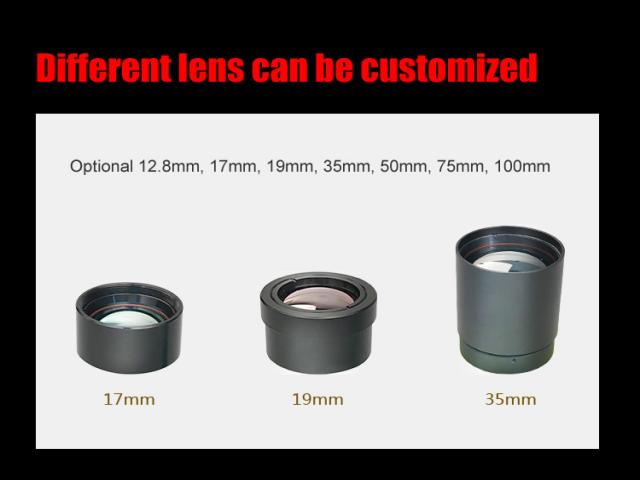

- Different lens can be customized
- Image color mode Optional
- The interface can be customized, USB/RJ45/HDMI/Camera Link, etc.
