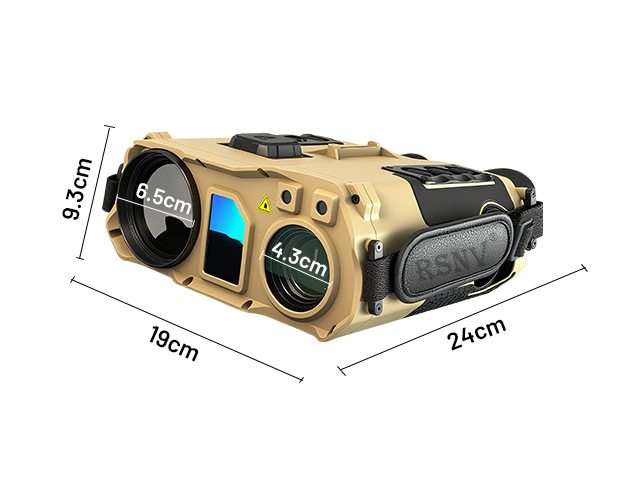

RSNV-VTL8 Multifunctional Handheld Observation System: Beyond-Visual-Range Precision Perception, Redefining Reconnaissance

In modern border defense, security, and emergency response, the rapid detection, accurate identification, and precise location of long-range targets are crucial to mission success. The VTL8 Multifunctional Handheld Observation System is the all-in-one solution designed for this very purpose. Integrating multi-spectral detection and intelligent information technology, it brings beyond-visual-range perception capabilities to the palm of your hand.

Multi-Spectral Fusion Detection, Mast er Day and Night

The RSNV-VTL8 combines thermal and visible light core observation modes to meet all-day operational needs:

• High-Performance Thermal Imaging: Utilizes a 640*512 @12μm high-performance detector with a 7.32°×5.86° FOV, effectively penetrating smoke, dust, and other obscurants. In darkness or zero-light conditions, it achieves reliable recognition of personnel targets at ≥1km and vehicle targets at ≥2km.

• HD Visible Light Camera: Equipped with a 1920×1080 HD camera featuring coaxial optical zoom from 44° down to 2.4°. In sufficient light, it switches to full-color mode, providing richer scene details and even longer recognition ranges (≥3km for personnel, ≥6km for vehicles), fulfilling daytime observation and evidence collection requirements.

Precise Ranging & Positioning, Data-Driven Decisions

The VTL8 not only "sees" but also "measures precisely," delivering critical data for action:

• Ultra-Long Laser Rangefinding: Employs an eye-safe 1535nm laser, offering a ranging capability of ≥6km for vehicles and ≥8km for large buildings, with a high accuracy of ±1m, enabling precise target location.

• Multi-Mode Satellite Positioning: Integrates BeiDou, GPS, and GLONASS systems, supporting various coordinate systems (WGS84/CGCS2000) and projections for rapid acquisition of precise geographical coordinates.

• Intelligent Magnetic Declination Correction: Features an innovative automatic magnetic declination correction system. It automatically identifies the local magnetic declination, eliminating manual setup and ensuring highly reliable azimuth data with an accuracy of 0.5° (RMS).

Rugged & Enduring, Focused on the Field

Designed for prolonged field operation, the VTL8 delivers a continuous operating time of ≥8 hours. The integrated 1080p FHD OLED display provides sharp, clear imagery even in bright sunlight. Additionally, it includes both 850nm invisible and 520nm visible laser pointers for coordinated operations and target designation.

The VTL8 redefines the performance benchmark for handheld observation equipment with its integration, intelligence, and precision, serving as your indispensable "Tactical Hawk-Eye" in complex environments.
