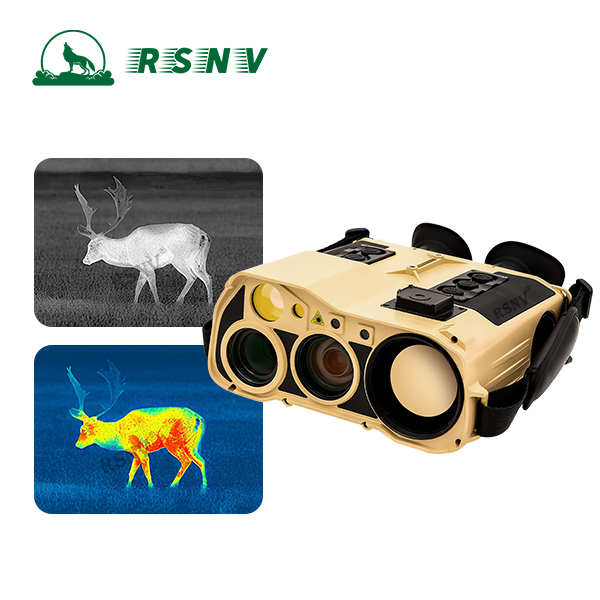

RSNV-VTL6 stands as a multi-spectral fusion platform that integrates seven observation modes into one
Sales Engineer: Grace Gao
Email: grace@rsnv.cn
WhatsApp: 0086-199 2997 5286
The system integrates seven core functions: Visible Light, Thermal Imaging, Low-light, Laser Rangefinding, Positioning, Electronic Compass, and Laser Indication, delivering comprehensive situational awareness from day to night, and from broad scenes to precise coordinates.
-
Full-Color Visible Light: Boasts 1920×1080 HD resolution with a wide-to-narrow FOV switch from 44° down to 2.4°. It maintains image output in illumination as low as 0.1Lux (B&W), ensuring continuous day/night surveillance.
-
High-Performance Thermal Imaging: Utilizes a 640×512 @12μm infrared detector with a 7.32°×5.86° FOV for rapid heat signature identification, penetrating smoke and dust for all-weather reconnaissance.
-
Infrared & Low-Light Fusion: Offers multiple enhancement modes including highlight, edge extraction, and blending, significantly improving target detection and identification probability in extreme darkness.
Precision Positioning & Intelligent Correction
-
Ultra-Long Laser Rangefinding: Features an eye-safe 1535nm laser with a ranging capability of up to 6km for vehicle targets.
-
Multi-Frequency BeiDou Positioning: Supports multi-frequency BeiDou and other global satellite systems, providing various coordinate system options for reliable and precise location data.
-
Intelligent Magnetic Declination Correction: Automatically identifies and corrects for local magnetic declination at the specified location, eliminating manual intervention and ensuring inherently accurate azimuth data with an accuracy of 0.5° (RMS).
Enduring Operation, Command in Your Hands
With a continuous operation time of ≥9 hours and a sharp 1080p FHD OLED display, the device ensures clear visualization in various environments. It also integrates both 850nm invisible and 520nm visible laser pointers to meet the demands of both covert and collaborative operations.
This device is not merely a integration of technologies, but a redefinition of the future of individual combat operations. By converging seven capabilities into one, it is designed to be your most reliable all-weather, all-terrain "Tactical Vision".
