Handheld Laser Rangefinder: Redefining the Standard for Long-Range Precision Measurement

In the fields of modern reconnaissance and target acquisition, accurate distance and azimuth data directly determine operational effectiveness. This handheld laser rangefinder, with its exceptional optical performance, ultra-long-range capability, and intelligent positioning technology, is the ideal equipment for forward reconnaissance, border patrol, and special operations.

Exceptional Optical System for Clear Observation of Every Detail

High-Definition Observation: 8x optical magnification with a 6° field of view, and a 33mm clear aperture ensure bright and clear imaging.
Intelligent Electronic Reticle: The electronic reticle system supports -5SD to +5SD diopter adjustment, adapting to different users' eyesight.
Multi-Sensor Expansion: Reserved infrared/low-light CMOS expansion interface allows for future multi-spectral observation upgrades.

Ultra-Long Precision Ranging, Setting a New Benchmark

10km Ultra-Long Detection: Measurement range ≥10km for large targets, ≥7km for vehicle targets, with a minimum range of 50m.
High-Precision Measurement: Ranging accuracy ±1m, supports adjustable measurement frequency from 1Hz to 10Hz, laser lifetime exceeds 50,000 measurements.
Smart Target Recognition: Capable of ranging up to three targets simultaneously; utilizes eye-safe Class 1 laser at 1535nm.

Precise Orientation & Positioning with Smart Coordinate Conversion

High-Precision Electronic Compass: Azimuth accuracy ≤0.3°, improving to ≤0.06° after map correction; pitch/roll angle accuracy ≤0.1°.
Multi-Coordinate System Support: Supports WGS84, GAUSS 6°, UTM, MGRS, and other coordinate systems, meeting various operational requirements.
Strong Expandability: Equipped with various interfaces including DC, RS232, HDMI, and a remote ranging button, supporting system integration and expansion.

Lightweight Design with Enduring Operational Capability

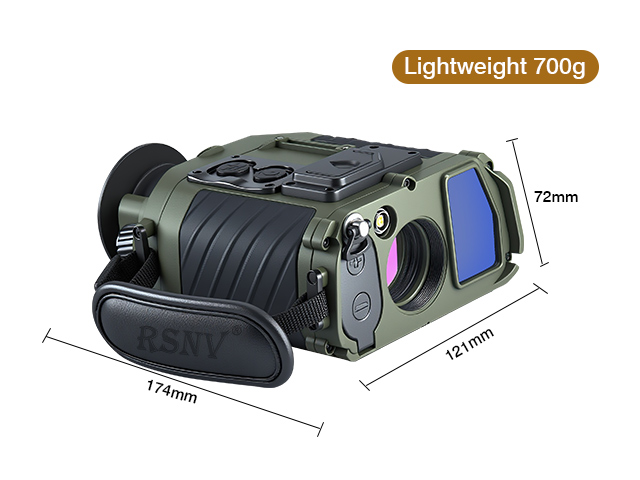

Extremely Portable: Compact dimensions of 174mm×121mm×72mm and a weight of only 732g facilitate prolonged handheld use by individual soldiers.
Long Battery Life: Continuous operation time ≥8 hours, meeting all-weather operational demands.
Rugged and Reliable: Professional protection design ensures stable performance in harsh environments.

This handheld laser rangefinder is not just a measurement tool; it is a data acquisition hub on the modern battlefield. With its precision, reliability, and portability, it is a key asset for enhancing individual combat effectiveness.
